The Application of Open Linear Magnetic Encoder in Displacement Sensor of Linear Servo Motor

Add to Basket Share to :

Price

CNY 350

Min Order Quantity10 Piece
Supply Ability10000Set/ Sets per Month
Portshenzhen
Delivery Lead Time30
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Shenzhen Inoservo Technologies Co.,Ltd
Membership Free member
Registration Date2018.09.24
Country/RegionChina
CityShenzhen
Contact Sufer(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name INOSERVO
- Model Number MSH
- Place of Origin China
- Supply Type OEM Service
- Condition New
- Color Gold
- Output Digital Sensor
- Theory Resistance Sensor
- Usage Magnetic Sensor
- Related Keywords Linear Magnetic Encoder, Linear Servo Motor, Magnetic Displacement Sen

Description by Manufacturer

Product Description

Non-contact open magnetoelectric system;
Miniature reading head;
Super anti-fouling capability;
Digital Type output;
The resolution ranges from 0.1 μm to 1 μm;

Product model description:

MSH20Y(0.1μm);
MSH20Z(0.5μm);
MSH20X(1μm);

The MRHS20 series magnetic grating Linear encoder system is a contactless open-ended magnetic grating encoder system for precise position feedback. The system can output digital square wave or analog sine-cosine signal in accordance with industry standards.

The built-in Set-up LED allows customers to install this series of gratings more quickly, and can be LED color to timely system troubleshooting.

Output note:

Output signal: Industrial standard RS422 differential output A+, A-, B+, B-, Z+, Z-;
Output signal circuit: differential line drive, maximum output current 100mA;
AB signal relationship: the AB signal phase angle is 90 degrees (to determine the direction of the reading);
Z signal output: cycle zero output;
Z signal spacing: 4 mm, z pulse width is a quarter of a believe signal) ；
Repeatability:≤±2μm;

Operating Environment and parameters

Operating voltage : 5V±5%;
Operating Temperature:-10~+80ºC;
Working Current :≤110mA;
Acceleration :10G;
Encoder cable:Φ = 5.2 mm reinforced shielded ultra-flexible cable, cable length can be customized according to customer requirements;

Certificates

- CE NTS2308001

Price

Price CNY 350 / Piece

Packaging & Shipping

- Packing1
- Package Weight 0.1 ( Kilograms )
- Delivery Lead Time30
- Minimum Order 10 Piece
- Supply Ability10000Set/ Sets per Month
- Total quantity in StockOver 5000
- Delivery Portshenzhen
- Shipping Career

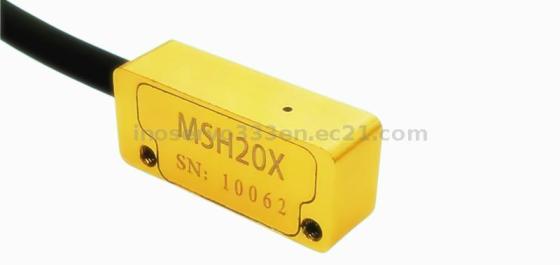

Product Image

The Application of Open Linear Magnetic Encoder in Displacement Sensor of Linear Servo Motor
