Product Attributes

- Brand Name Microbrain
- Model Number UAV-R21-1
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Related Keywords uav radar, obstacle avoidance radar, drone radar, millimeter wave radar

Description by Manufacturer

Product Details

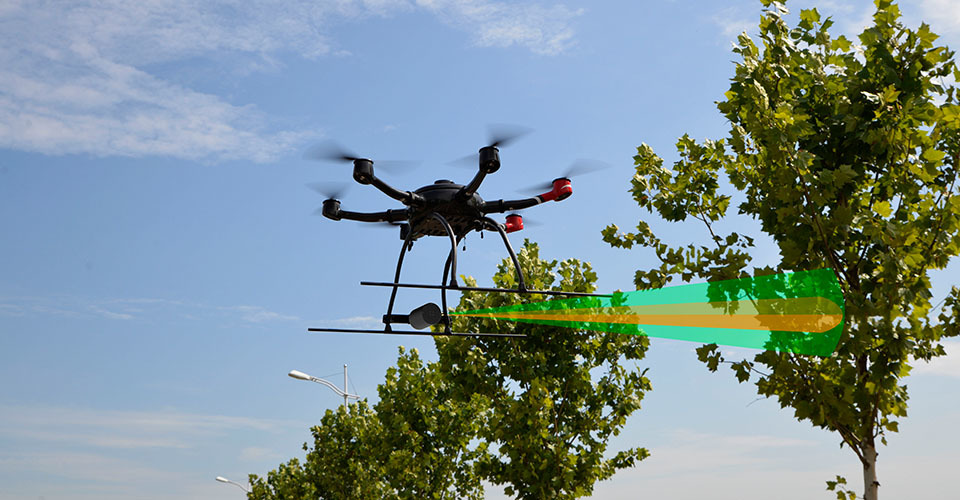

UAV-R21-1 77GHz millimeter wave obstacle avoidance radar is mounted on farming agriculture drone front/rear. It can detect obstacles and keep obstacle avoidance automatically during drone flying.

This radar tell whether there’s obstacle in front by sending fan-shaped 79GHz electromagnetic wave forward and processing returned signals. By using the 79GHz high frequency band millimeter wave radar, the radar will get data feedback about the relative distance from obstacle to radar, the speed and the angel, then finally guide the drone to avoid the obstacles and ensure work safety.

莫之比

Product Features

● 1.5~27m obstacle detection;

● CAN connect interface;

● Adapt to Pixhawk / Ardupilot flight controller;

● IP67 protect level;

● Tiny body with only 105g.

Product Parameters

Parameters	Value
Frequency Band	79 GHz
Waterproof Level	IP67
Interface	CAN
Sense Range	0.2~27m
Sense Accuracy	±0.02m
Resolution	0.12m
Azimuth (-6dB)	±15°
Elevation (-6dB)	±4°
Max EIRP (dBm)	30
Bandwith	1.5GHz
Refresh Rate	20Hz
Voltage	5~24V DC
Work Temperature	-40~+ 85℃
Power Consumption	≤3W
Dimension	7671.519.6mm
Adapted Controller	Pixhawk / Ardupilot / Open Source

Click for more: https://en.microbrain.com.cn/uav-drone-obstacle-avoidance-radar

Certificates

- CE MRT202003RSH15
- TUV 1210067109TMS

Price

Price US$ 105 ~ 140 / Piece
