Valid Magnetics Integrated / Electric Motor Test System for Water Pump, Electrical Appliance Motors

Add to Basket Share to :

Price

US$ 9999

Min Order Quantity1 Piece
Delivery Lead Time21
Payment Terms 2
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Valid Magnetics Limited
Membership Free member
Registration Date2014.06.11
Country/RegionHong Kong
CityFo Tan
Contact Matthew(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name ValidMagnetics
- Model Number BHD
- Place of Origin Hong Kong
- Supply Type OEM Service
- Condition New
- Related Keywords Motor test, Dynamometer, Torque, Loading test, power efficiency

Description by Manufacturer

Overview
Hysteresis Brake Dynamometer is designed for testing with low to middle power appliances, especially high-speed motor testing. It is able to provide a complete measurement of a motor from free-running to rotor-locked because the source of torque generated is not coming from speed. There are three brake-cooling methods for our own designed hysteresis brake dynamometers:

HD type: cooling by air fan or convection (no external source)
AHD type: cooling by compressed air
BHD type: cooling by dedicated blower

Our hysteresis dynamometers have achieved accuracy ratings of ±1% full scale, depending on size and system configuration. Fine adjustment for optimization can be done with the support of our own invented dynamotmeter controller. It has high cost/performance ratio with small size and simple operation procedure. Customized or special designed of fixing units, based on the customer requirement is possible.

Customized System for motor testing is available!

Model	Minimum torque at rated current Kg·cm	Kinetic power(5 minutes)			Kinetic power(Continuous)			(rpm)Max speed	Coolingmode
Model	Minimum torque at rated current Kg·cm	Without air supply	With air supply	With blower	Without air supply	With air supply	With blower	(rpm)Max speed	Coolingmode
HD Type Air Cooling Hysteresis Dynamometer
HD-200	0.02	10	—	—	5	—	—	100000	By Fan
HD-500	0.05	20	—	—	6	—	—	100000	By Fan
HD-101	0.1	35	—	—	8	—	—	300000	By Fan
HD-201	0.2	35	—	—	8	—	—	300000	By Fan
HD-301	0.3	50	—	—	12	—	—	300000	By Fan
HD-501	0.5	50	—	—	12	—	—	300000	By Fan
HD-102	1	90	—	—	25	—	—	25000	By Fan
HD-202	2	90	—	—	25	—	—	25000	By Fan
HD-302	3	250	—	—	65	—	—	25000	By Fan
HD-502	5	250	—	—	65	—	—	25000	By Fan
HD-103	10	400	—	—	80	—	—	25000	By Fan
HD-203	20	580	—	—	120	—	—	25000	By Fan
HD-303	30	700	—	—	150	—	—	25000	By Fan
HD-503	50	1000	—	—	200	—	—	25000	Convection
HD-603	60	140	—	—	300	—	—	25000	Convection
HD-144	140	2000	—	—	700	—	—	12000	Convection
HD-284	280	3800	—	—	1300	—	—	12000	Convection
AHD Type Compressed Air Cooling Hysteresis Dynamometer
AHD-102	1	—	200	—	—	80	—	25000	Comp. Air
AHD-202	2	—	200	—	—	80	—	25000	Comp. Air
AHD-302	3	—	400	—	—	120	—	25000	Comp. Air
AHD-502	5	—	400	—	—	120	—	25000	Comp. Air
AHD-103	10	—	800	—	—	350	—	25000	Comp. Air
AHD-203	20	—	1000	—	—	500	—	25000	Comp. Air
AHD-303	30	—	1300	—	—	800	—	25000	Comp. Air
AHD-503	50	—	1500	—	—	1200	—	25000	Comp. Air
AHD-603	60	—	2500	—	—	1500	—	25000	Comp. Air
AHD-144	140	—	2800	—	—	1800	—	25000	Comp. Air
AHD-284	280	—	5000	—	—	2800	—	25000	Comp. Air
BHD Type Air Blower Cooling Hysteresis Dynamometer
BHD-303	30	—	—	1500	—	—	900	25000	Air Blower
BHD-503	50	—	—	2000	—	—	1800	25000	Air Blower
BHD-603	60	—	—	3200	—	—	2800	25000	Air Blower
BHD-144	140	—	—	3500	—	—	3000	12000	Air Blower
BHD-284	280	—	—	7000	—	—	5500	12000	Air Blower

Price

Price US$ 9999 / Piece

Packaging & Shipping

- Delivery Lead Time21
- Minimum Order 1 Piece
- Shipping Career

Product Image

Valid Magnetics Integrated / Electric Motor Test System for Water Pump, Electrical Appliance Motors

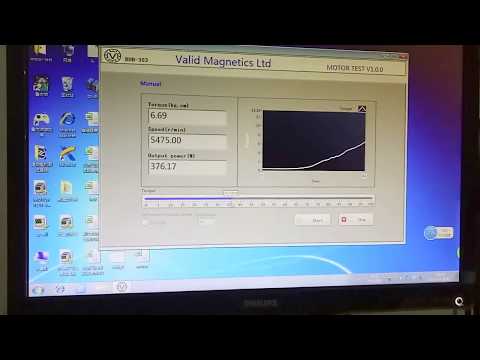

Product Video

Valid Magnetics Integrated / Electric Motor Test System for ...

Motor Test Related Products

Company Profile

About Valid Magnetics Limited

Membership Free member
Registration Date2014.06.11
Country/RegionHong Kong
CityFo Tan
Contact Matthew(Mr.)

Valid Magnetics is a Hong Kong based technology company specialized in testing, measuring and controlling products or systems in torque, tension, load-force-weight field. We have our own manufacturing facilities and R&D department for designing, improving and producing the latest products and obtain several patents for the contribution and innovation in this area. We are the leading manufacturer of motor test equipment, hysteresis brakes / clutches and electronic tension devices in Asia with hundreds of local and oversea customers in over 20 countries.
