Automatic Large Tapioca Starch Scraper Centrifuge Factory Price

Add to Basket Share to :

Price

US$ 12000

Min Order Quantity1 Set
PortShanghai
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Nanjing Kingreat Machinery Co.,Ltd
Membership Free member
Registration Date2023.01.20
Country/RegionChina
CityZhangjiagang
Contact XU SHU(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Separation Equipment, Peeler centrifuge

Description by Manufacturer

Essential details

Place of Origin:: Jiangsu, China

Type:: Centrifuge

Product Type:: Horizontal Centrifuge

Condition:: New

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Hot Product 2022

Warranty of core components:: 1 Year

Core Components:: PLC, Bearing, Motor

Brand Name:: Kingreat

Voltage:: 220, 380, 440, 460V....

Power:: 18.5Kw-55Kw

Weight:: Depends on the model

Dimension(L*W*H):: Depends on the model

Warranty:: 1 Year

Key Selling Points:: Long Service Life

Applicable Industries:: Manufacturing Plant, Food & Beverage Factory, Starch

Application:: Starch, calcium carbonate, and others

Operation:: Continuous Automatic

MOC:: SS304,SS316

Equipped:: PLC system, Inverter

Discharge type:: Spiral scraper discharge

Base concrete:: Needed

Shape:: Horizontal

collocation 1:: Hydralic system

collocation 2:: Level detector

Standard:: GMP

After-sales Service Provided:: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Certification:

ISO

Product Description

PGKS horizontal siphon scraper centrifuge is a kind of siphon scraper discharging centirfuge designed on the basis of PGK horizontal scraper discharging centrifuge. PGKS centrifuge is an automatic centrifuge with intermittent feeding and filtered scraper discharging. Except centrifugal force, siphon centrifuge also has a kind of siphon draught force similar to vacuum pipe. Compared with common scraper discharging centrifuge, PGKS centrifuge owns higher production capacity and separating washing effect. The machine is controlled by PLC and regulates speed by frequency convertorm and braking system applies both dynamic braking and regenerative braking. According to the predetermined procedures, such as feeding, separating, washing, discharging and mesh washing are all under according speed(or full speed).

PGKS horizontal scraper discharging centrifuge separates solid-liquid mixture with fine and medium partical and is especially suitable for the dehydrating and washing of the small solid phase granularity and which is hard to be separated.(e.g.starch and calcium phosphate etc). The cetrifuge can highly improve the separation of sodum bicarbonate.

Main Characters

1)This centrifuge has higher production capacity than common scraper centrifuge and the moisture content of filter cake is lower.

2)Material for the components touching the products and the mother liquid can be chose and supplied by the customers according to the erosion of the products. Manufacturers should assist customers to make reasonable choices. Final decision is subject to the attachment of the contract. Commonly the material can be 0Cr19Ni9,321,316L,TA2,C276 and duplex steel.

3)The adoption of PLC and speed regulation by frequency convertor makes the stepless speed regualtion and braking of the machine possible. The operations of the machine are totally automatically.

4)Several interlock control devices highly improve the security of the machine.

5)Floating platform and shock absorber need to be installed to the bottom of the centrifuge to reduce damages of vibration to the plant and equipment.

Technical Parameters

Model	PGKS-1000	PGKS-1250	PGKS-1600
Drum diameter (mm)	1000	1250	1600
Drum height (mm)	500	630	1000
Drum volume (l)	200	335	879
Loading capacity (kg)	250	430	1100
Max speed (r/min)	1400	1200	950
Max separating factor	1095	1006	808
Motor power (kw)	45	75/90	132

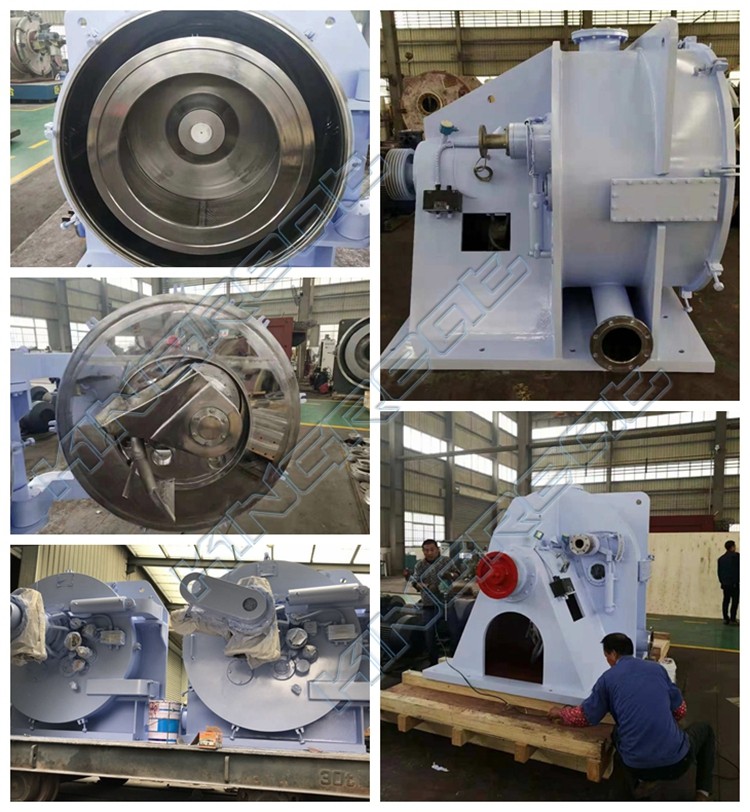

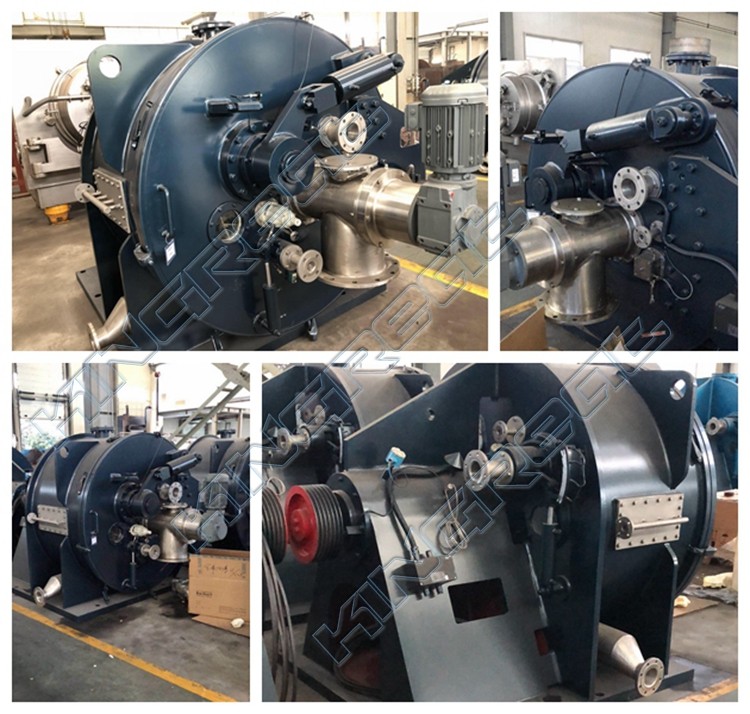

Detailed Images

Packing

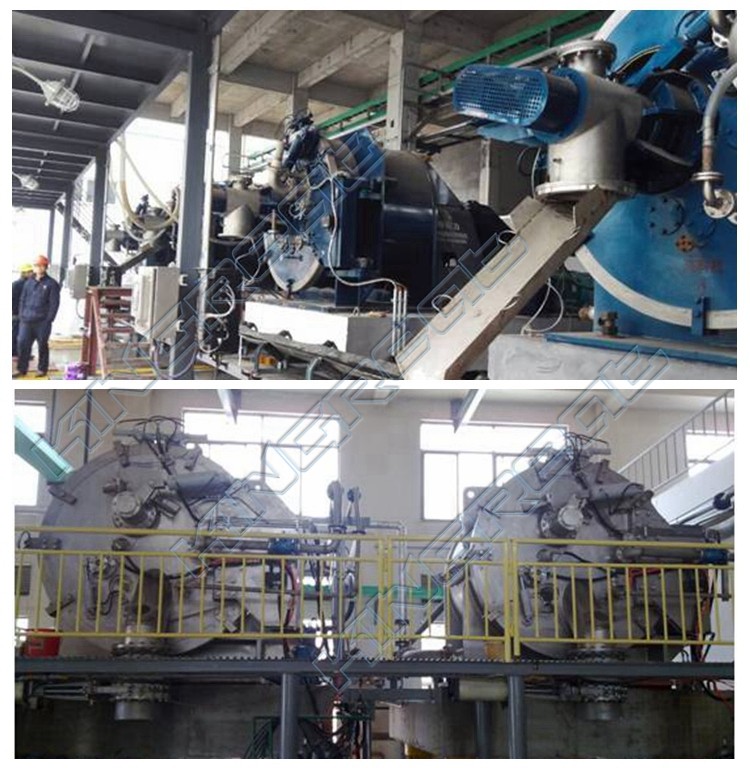

Working Site

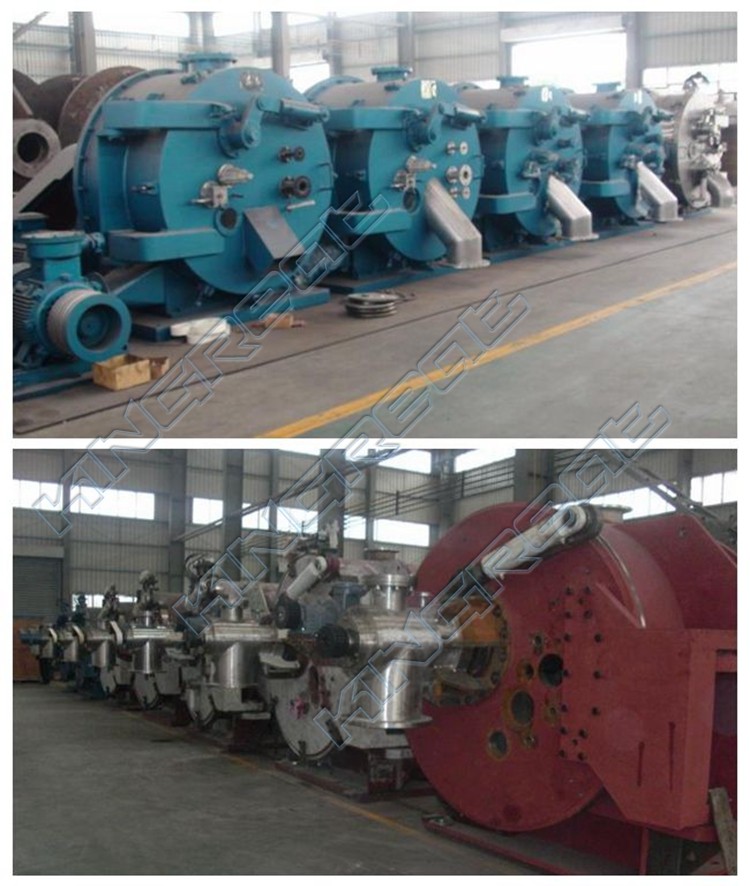

Workshop

Price

Price US$ 12000 / Set

Product Image

Automatic Large Tapioca Starch Scraper Centrifuge Factory Price

Automatic Large Tapioca Starch Scraper Centrifuge Factory Price 2

Automatic Large Tapioca Starch Scraper Centrifuge Factory Price 3

Automatic Large Tapioca Starch Scraper Centrifuge Factory Price 4

Automatic Large Tapioca Starch Scraper Centrifuge Factory Price 5

Automatic Large Tapioca Starch Scraper Centrifuge Factory Price 6

Separation Equipment Related Products

Main Export Markets

- Nanjing Kingreat Machinery Co.,Ltd is mainly exporting to China (Mainland), Asia, Europe, North America, South America, Australia

Company Profile

About Nanjing Kingreat Machinery Co.,Ltd

Membership Free member
Registration Date2023.01.20
Country/RegionChina
CityZhangjiagang
Contact XU SHU(Mr.)

Nanjing Kingreat Machinery Co.,ltd is a subsidiary of China State Shipbuilding Corporation (CSSC Group).which was established in 1958, covering an area of 650000m2,
there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001: 2008 quality control system
and the military product quality certificate,BV and CE certificates.some of our machines gained the new technology invent patent.We are one of the world's leading manufacturers of disc centrifuges,
decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling,
chemistry and marine. Now ,there are over 150series of decanter centrifuges and disc separators used home and abroad,, including U. S. A, Canada, Australia, Russia, England, Sweden, Norway,
Argentina, Singapore, Brazil, Thailand, Vietnam, Malaysia and so on totally 50countries.
