Automatic Vertical Type Bottom Pharmaceutical Centrifuge

Add to Basket Share to :

Price

US$ 3500

Min Order Quantity1 Set
PortShanghai
Payment Terms 3
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Nanjing Kingreat Machinery Co.,Ltd
Membership Free member
Registration Date2023.01.20
Country/RegionChina
CityZhangjiagang
Contact XU SHU(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Separation Equipment, Bottom Discharge centrifu

Description by Manufacturer

Essential details

Place of Origin:: Jiangsu, China

Type:: Centrifuge

Product Type:: Bottom Discharge Centrifuge

Condition:: New

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Hot Product 2023

Warranty of core components:: 1 Year

Core Components:: PLC, Bearing, Motor

Brand Name:: Kingreat

Voltage:: 220, 380, 440, 460V....

Power:: 5.5Kw-55Kw

Weight:: Depends on the model

Dimension(L*W*H):: Depends on the model

Warranty:: 1 Year

Key Selling Points:: Automatic

Applicable Industries:: Manufacturing Plant, Food & Beverage Factory, Energy & Mining, Chemical & Pharmacy

Keywords:: Bottom Pharmaceutical Centrifuge

Control system:: PLC

MOC:: SS304,SS316,etc

Speed control:: Frequency conversion

Application:: Separation for medium, fine solid particles

Base concrete:: None

Lid type:: Hydraulic whole lid open type

Equipped with:: Safety protect device

Jacket:: With

Standard:: GMP

After-sales Service Provided:: Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support

After Warranty Service:: Video technical support, Online support, Spare parts, Field maintenance and repair service

Certification:: ISO

Product Description

This centrifuge is a solid-liquid separation machine by centrifugal force, after the revolving drum has reached to a certain speed, the material can be distributed evenly on the wall of drum by feeding pipe, and the filter liquid is discharged by pore of filter cloth installed in the drum, then drained from the outlet pipe, and the solid is left in the drum ,after  reaching a certain amount, the scraper is started to scrape the material from the drum wall, then product will be sent out by spiral transmission structure；
This centrifuge adopts PLC control and stepless speed adjustment by frequency conversion speed controller, which energy can be consumed by dynamic braking system; this design can reach the result of even stop of centrifuge. In accordance with each preset program, feeding, separating, washing, dehydration, discharging on each speed.
This series centrifuges are widely used on suspension separating of middle size particle, special when the customer do not have a high requirement on solid crystal figure.

Main Characters

1 It adopts platform structure which bottom has liquid phase damp shock absorber, no foundation installation type, easy to install, hard to ageing, working period is long；

2  Design characteristic of bearing:
2.1 Bearing seat adopt inner and outer jacket which is easy to dismantle and maintain；
2.2 Bearing seat machining will ensure precision of the bearing seat. Adopt Japan Toshiba CNC which has high rigid, high precision which can bear heavy load and wide operation space；
2.3 Main shaft seal is PTFE lip seal and gas seal to ensure no leakage;

3 No stiffening rib on drum wall, whole lathe machining, surface is smooth and no dead angle, polishing density is high, running noise is low, vibration is weak；Drum is machined by Germany Schiess CNC and is with high stability, high accuracy and good flexibility which can meet all operating requirements. Direct measuring device guarantees absolute accuracy and repeat location accuracy.；

4 Lid adopts hydraulic whole lid open type, fast open and with lock device to ensure scraper discharging safety；

5 Safety protect device：over vibration protect, over current and over load protect, product level control, lid open protect(mechanical and electrical protection), scraper initial position protect, interlock protect etc to ensure safe operation of the centrifuge；

6 Whole design of the centrifuge meet with GMP requirement..

Technical Parameters

Model/ Item	Basket diameter (mm)	Basket Height (mm)	Basket volume (L)	Loading Capacity(kg)	Max. Speed （r/min)	Maximum separating factor	Motor power (Kw)	Size (including shock absorb) (mm)	Weight (Kg)
PPSBD60S	600	350	45	60	1800	1064	5.5	170012001700	1500
PPSBD135S	800	400	100	135	1500	1007	7.5	170014001960	2000
PPSBD180S	1000	420	140	180	1080	652	15	196815002060	3500
PPSBD250S	1000	580	190	250	1200	805	15	196812002400	3800
PPSBD320S	1200	500	260	320	970	631	18.5	228018002350	4350
PPSBD520S	1250	500/ 630	310/ 400	400/520	1000	698	18.5	228018002500	5000/ 5600
PPSBD650S	1250	800	505	650	1000	698	22	228018002900	6000

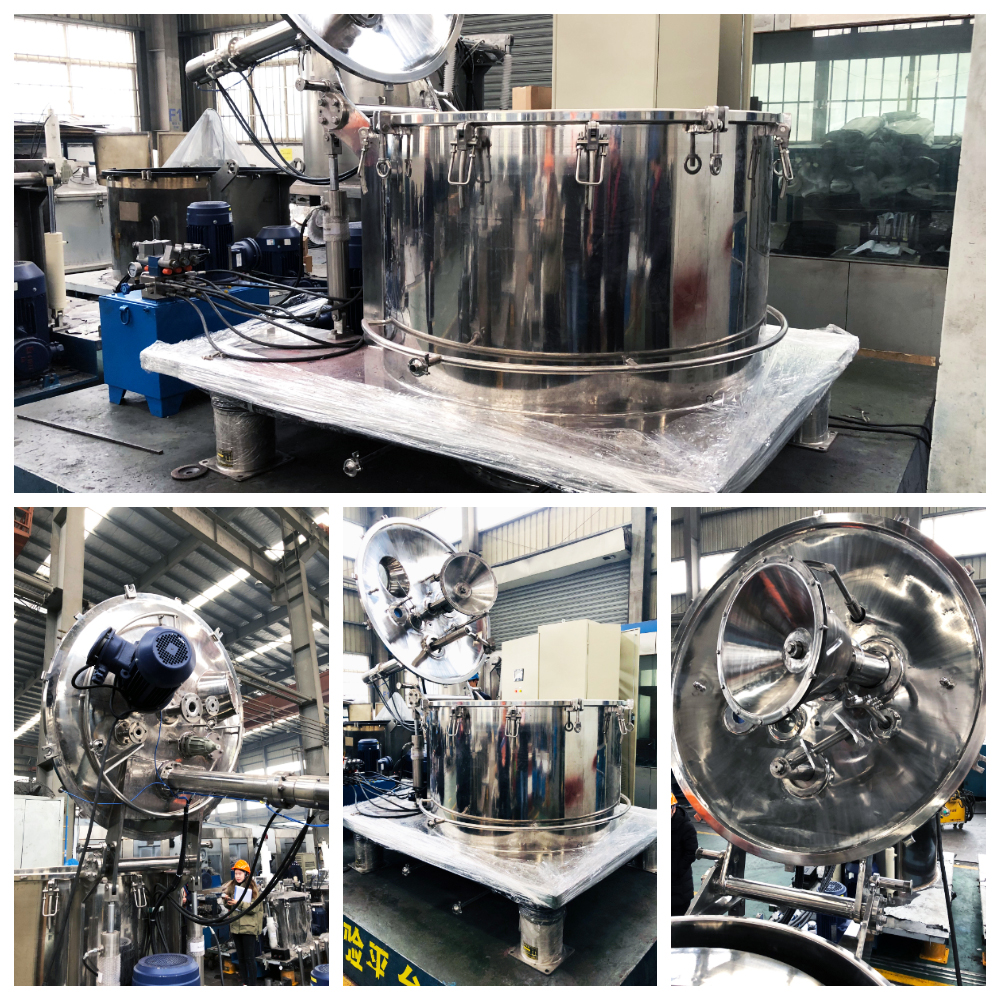

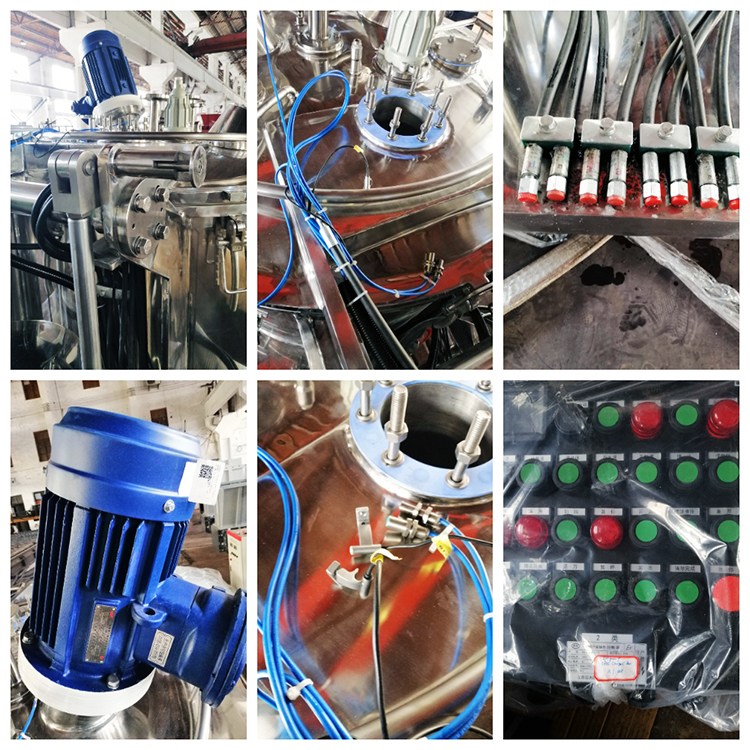

Detailed Images

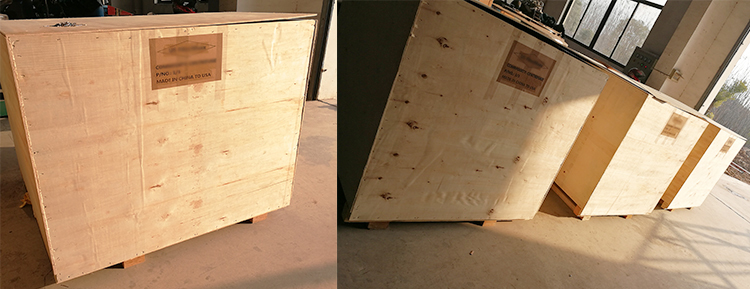

Packing

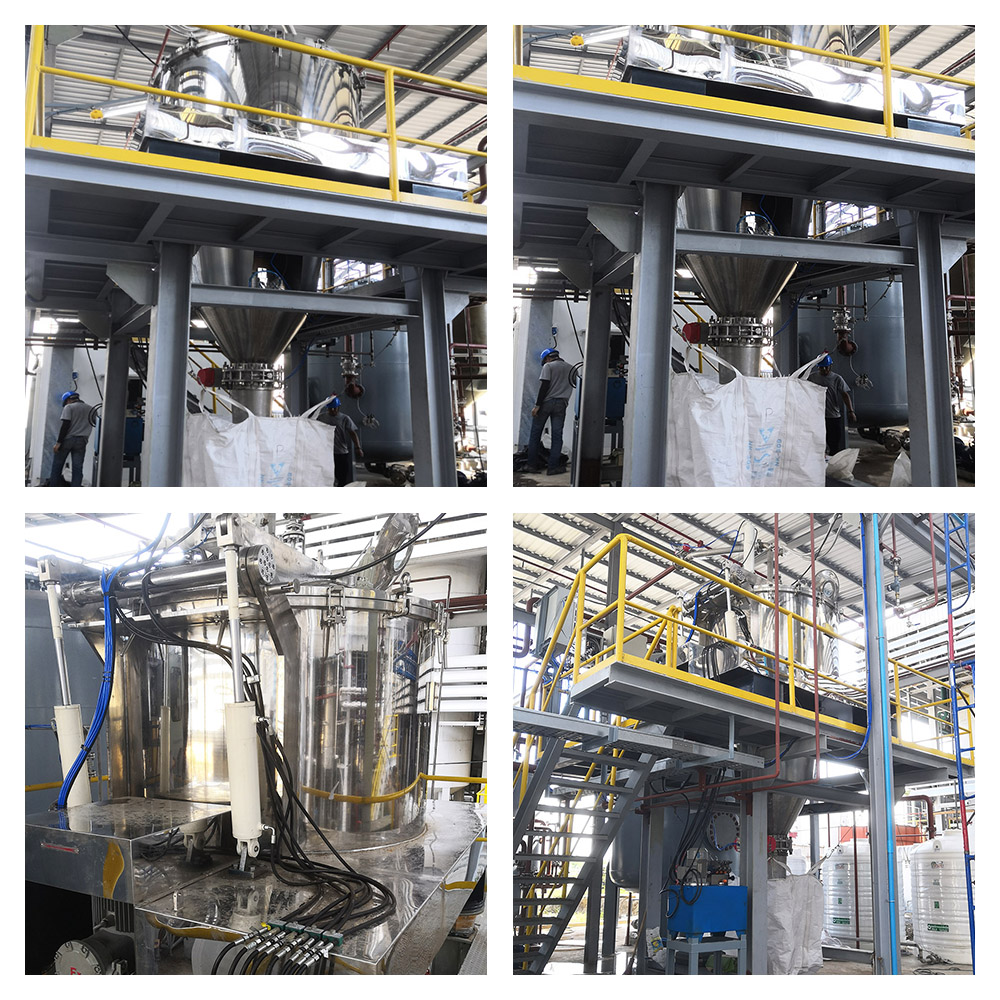

Working Site

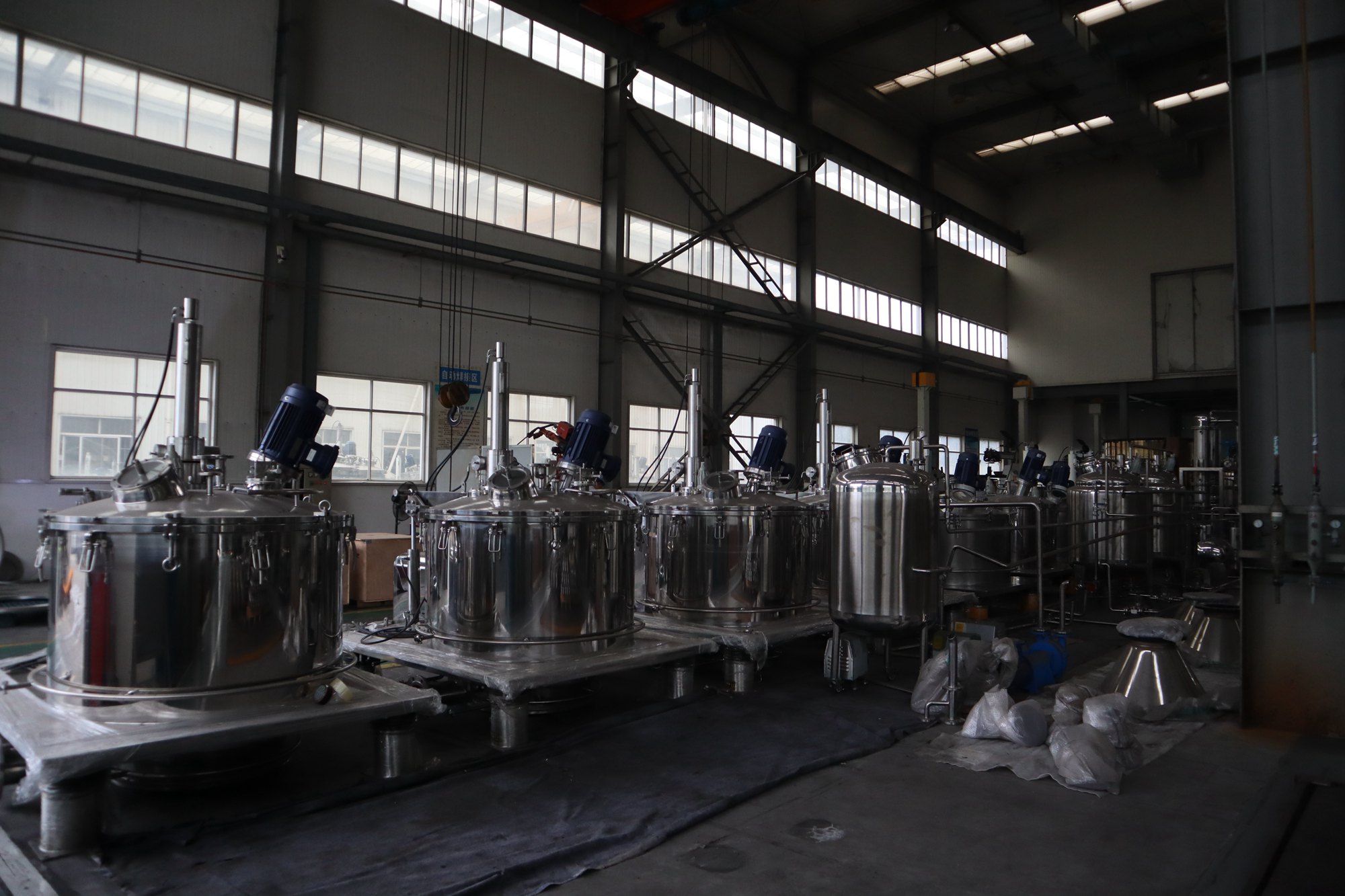

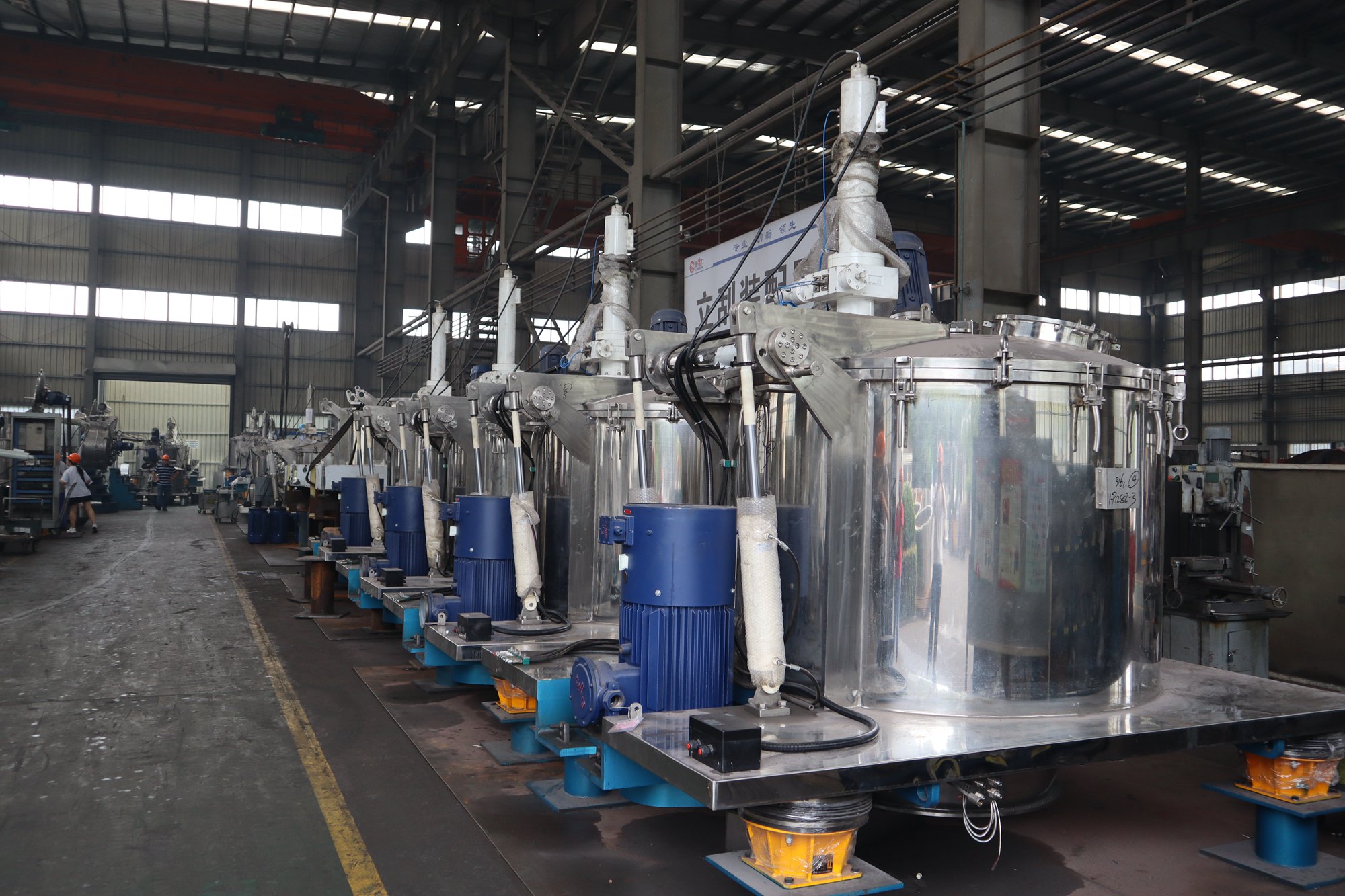

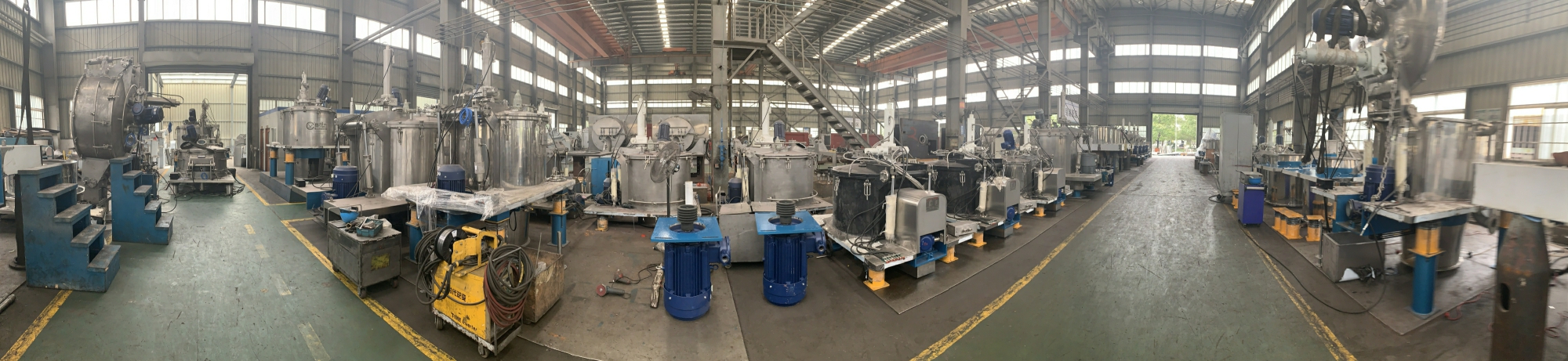

Workshop

Price

Price US$ 3500 / Set

Product Image

Automatic Vertical Type Bottom Pharmaceutical Centrifuge

Automatic Vertical Type Bottom Pharmaceutical Centrifuge 2

Automatic Vertical Type Bottom Pharmaceutical Centrifuge 3

Automatic Vertical Type Bottom Pharmaceutical Centrifuge 4

Automatic Vertical Type Bottom Pharmaceutical Centrifuge 5

Automatic Vertical Type Bottom Pharmaceutical Centrifuge 6
