Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Related Keywords Bag inverting centrifuge

Description by Manufacturer

Essential details

Place of Origin:: Jiangsu, China

Type:: Centrifuge, Horizontal

Product Type:: Inverting Bag Centrifuge

Condition:: New

Video outgoing-inspection:: Provided

Machinery Test Report:: Provided

Marketing Type:: Hot Product 2022

Warranty of core components:: 1 Year

Core Components:: PLC, Engine, Bearing, Motor

Brand Name:: Kingreat

Voltage:: 220, 380, 440, 460V....

Power:: Depends on the model

Weight:: 2000

Dimension(L*W*H):: Depends on the model

Warranty:: 1 Year

Key Selling Points:: Long Service Life

Applicable Industries:: Manufacturing Plant, Food & Beverage Factory, MedicaL&Chemical

Keyword:: Inverting Bag Centrifuge

Discharge Type:: Continuous Automatic

MOC:: SS304/SS316/DDS Etc

Equipped:: Control box

Ex-proof level:: ExdIIBT4

Shape:: Horizontal

Application:: Chemical and Pharmaceutical industries

Separation:: Solid liquid separation

Standard:: GMP

Product Description

Characteristic 1.Fully sealed structure design, reliable sealing, no pollution to materials.
The shell can be completely turned over for easy cleaning and inspection.
Discharge without scraper mechanical parts, no damage to gain crystal;
There is no material residue in the filter cloth, which facilitates the separation of materials in the next batch.
Damping shock absorber, no foundation installation;
Unmanned operation, automatic detection and operation;

Working Principle
This type of machine is mainly composed of a rotating mechanism, a discharging mechanism, a machine base, a bearing combination, a rotating drum, a pusher, a screen, a casing, and an electric control part. Under high-speed operation, the suspension enters the drum through the feeding tube. Under the action of centrifugal force, the suspension is evenly distributed in the filter cloth inside the drum. The liquid phase passes through the pores of the filter cloth and the gap of the screen. And the drum filter hole is drained from the mother liquor nozzle, and the solid phase is trapped on the filter screen to form an annular filter residue layer. When unloading, the main engine first slows down to the unloading speed, starts the unloading motor, and pushes the pusher from the drum. Because both ends of the filter cloth are fixed on the pusher and the drum, the filter cloth is turned inside and outside. The trapped material is turned over to the outside of the filter cloth. Also under the action of the centrifugal force field, the material is removed from the filter cloth and discharged from the discharge port.
Working Process Diagram
The suspension enters the drum through the feed pipe. The amount of feed can be controlled according to time or flow, or can be controlled by a load cell.
The cleaning liquid enters the rotating drum through the feeding tube, so that the cleaning liquid penetrates the filtering cake layer to achieve the washing effect. The amount of the cleaning liquid can be controlled according to time or flow, or can be controlled by a weighing sensor.
The conversion is rotated according to the preset value, and the preset speed is set according to the process requirements. The filtrate flows through the discharger and the solids are trapped in the filter cloth to form an annular filter cake.
The filter cloth is turned over by the rotation of the shaft, and the separated solid is discharged, and the pusher tray will keep the rotation at a low speed, so that the material is completely discharged outside the machine.
In the closed environment, the CIP in-place cleaning system can effectively clean the inside of the machine.
In order to achieve the best cleaning effect, the discharge port and the mother liquid port can be closed with a valve, the machine is immersed and cleaned, and the liquid level is detected by the liquid level switch to reach a preset level.

Technical Parameters

Model	FW-630	FW-800	FW-1000	FW-1300
Drum diameter (mm)	630	800	1000	1300
Drum volume(l)	70	120	200	350
Filter area(m2)	0.56	0.85	1.26	2.0
Speed(r/min)	1940	1600	1270	1000
Max separating factor	1325	1144	901	726
Weight(kg)	3600	4200	5500	6500
Overall dimensions(mm)	297010401650	398014501890	499016502560	590020503250

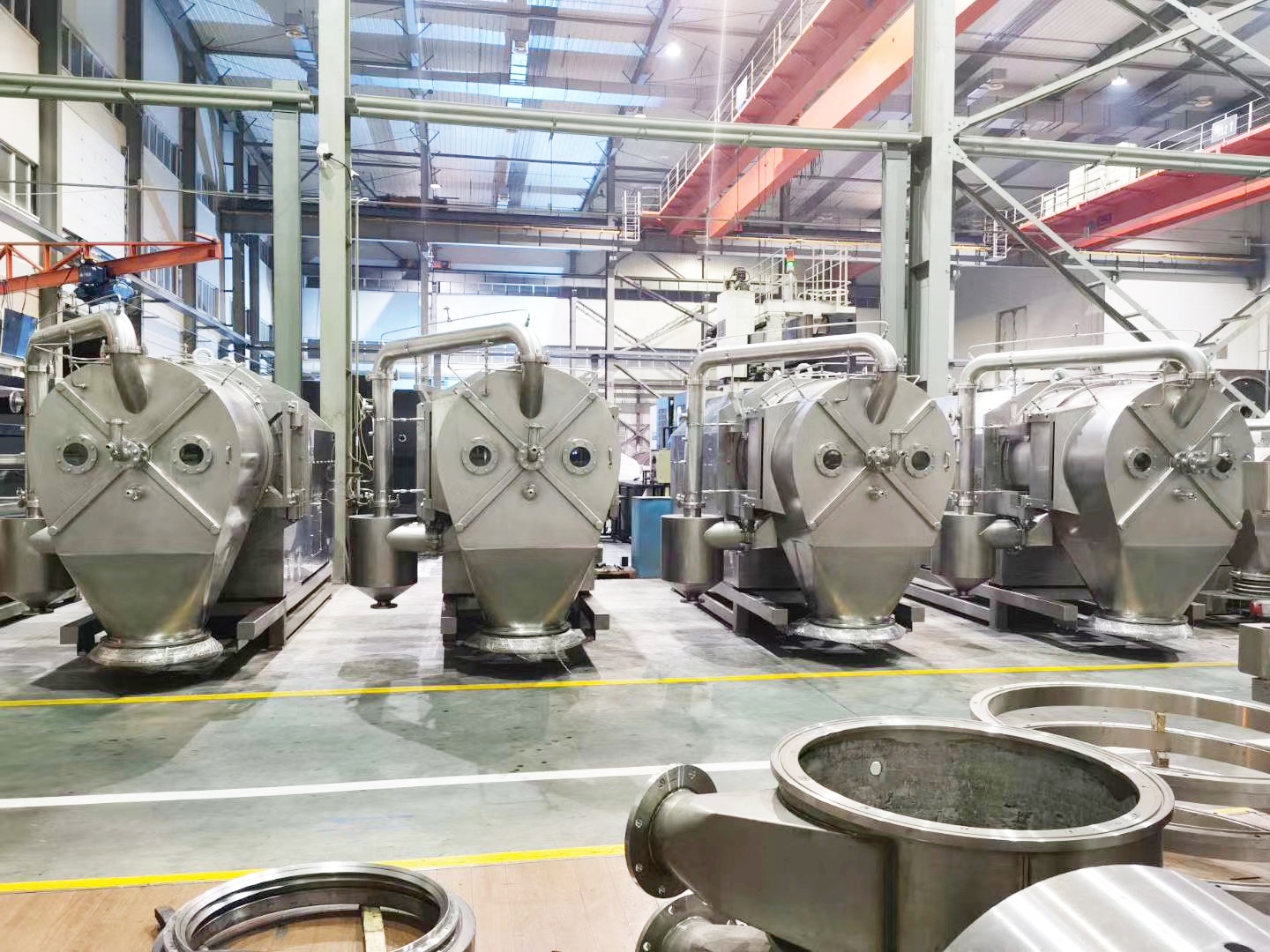

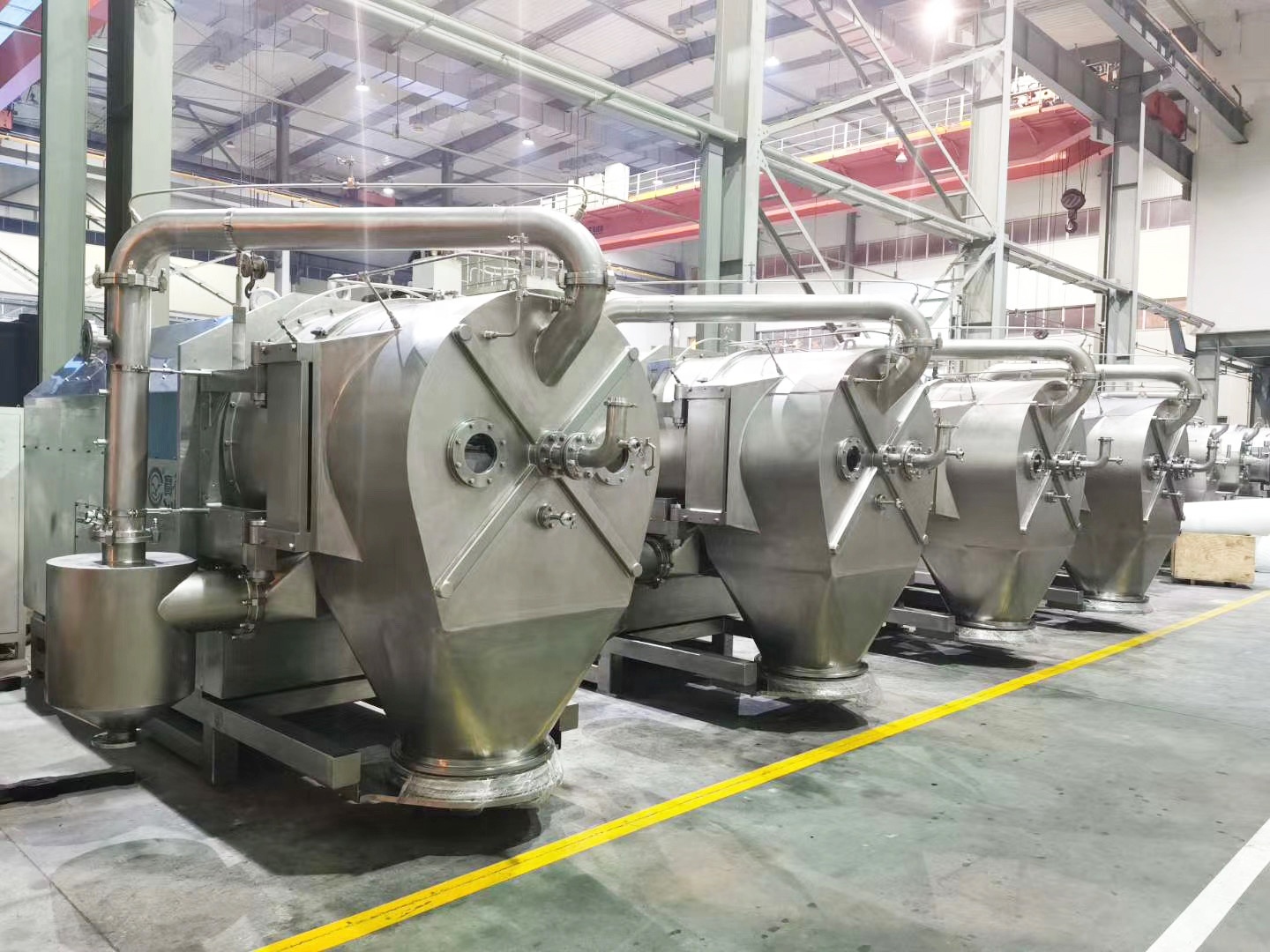

Detailed Images

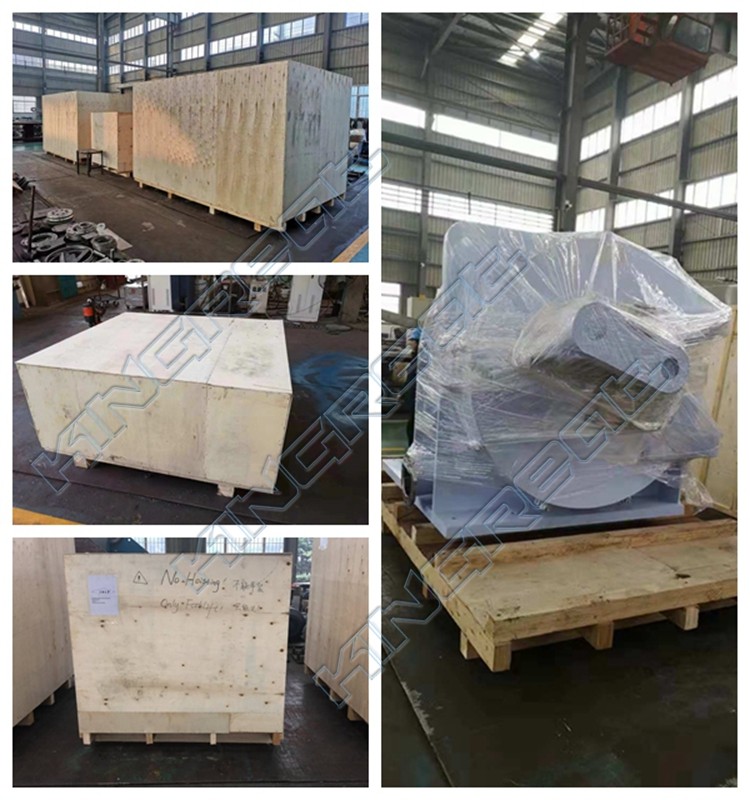

Packing

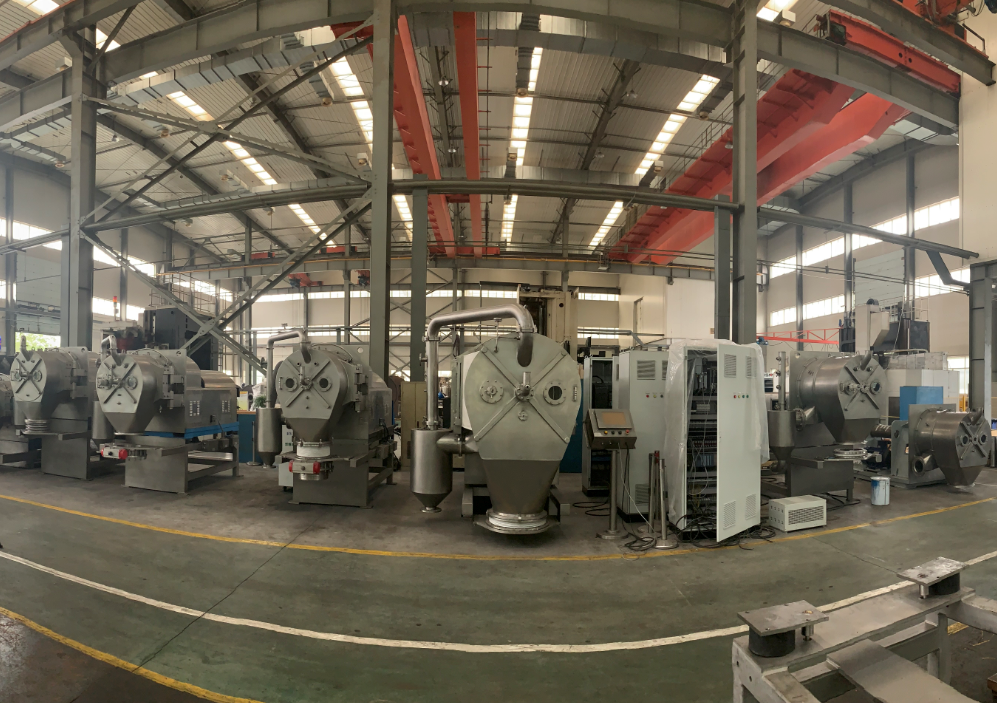

Workshop

Our Certificates

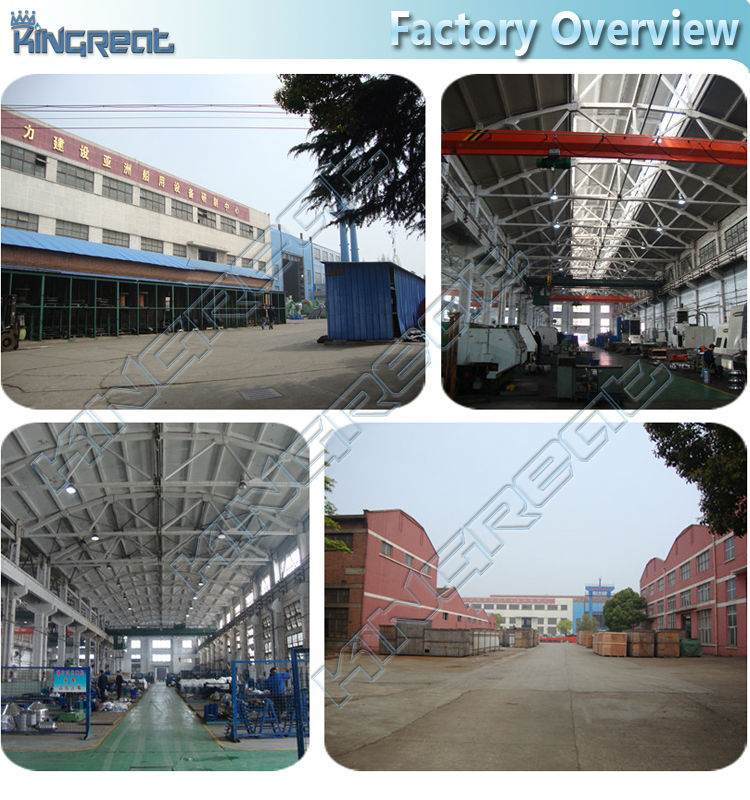

Our Company

Nanjing Kingreat Machinery Co., Ltd, covering an area of 650000m2, there are 2300 staff and employee in our company, 281 of them are technicians and engineers. It has obtained the approvals and certifications of both ISO9001:2008 quality control system and the military product quality certificate, BV and CE certificates. Some of our machines gained the new technology invent patent.

We are one of the world's leading manufacturers of disc centrifuges, decanters, separation systems and marine equipment. We focus on food production, environmental protection, energy recycling, chemistry and marine. Now there are over 150 series of decanter centrifuges and disc separators used both home and abroad.
