Cable TV Node Agc Catv Optical Receiver

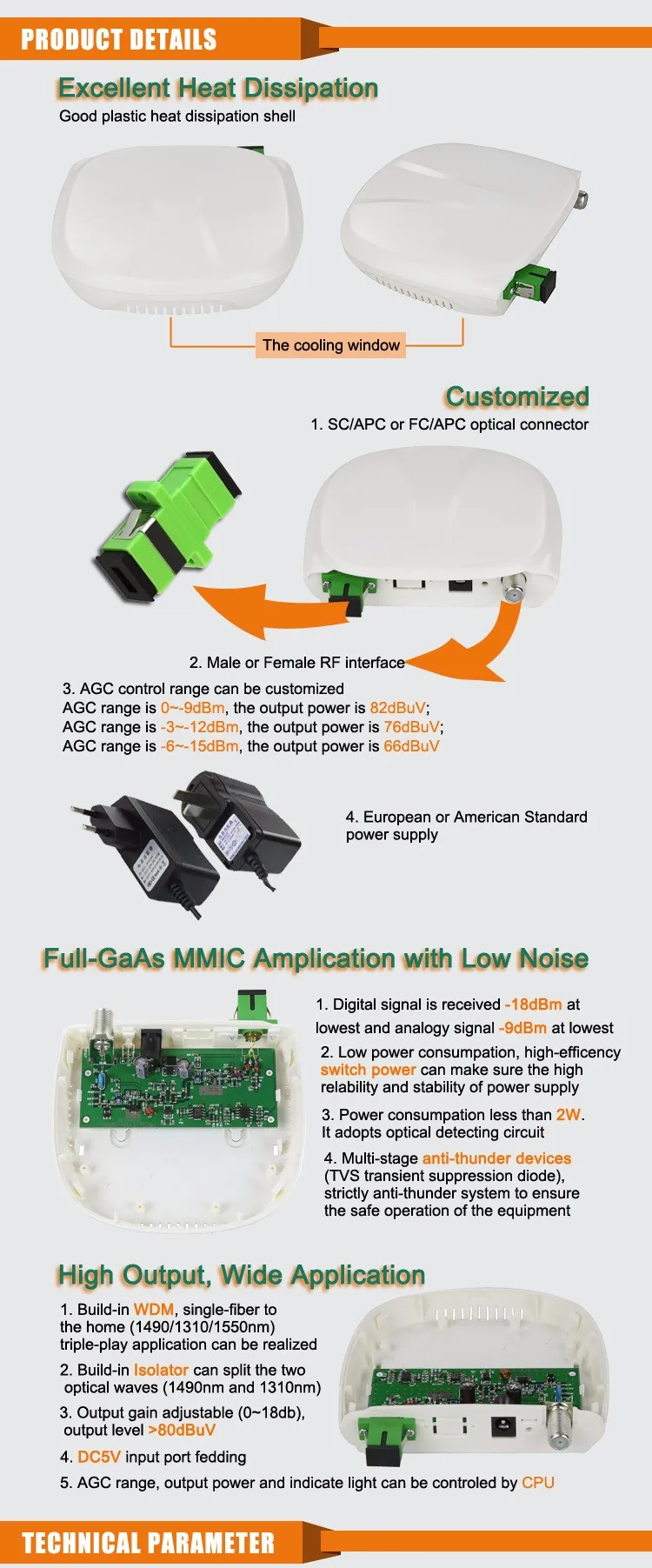

FTTH type optical receiver is a home-based optical receiver, cater to the ultimate goal of development of optical access for FTTH network, analog or digital signal can be realized. The equipment uses low-power optical detector, GaAs and optical control AGC technology to meet the needs of FTTH CATV reception. Variety of functional products in the applications is slightly different.

FTTH type optical receiver OR19C is with AGC, plug-in photocell. OR19W is with WDM and AGC.

ftth

Technical Data	OR19
Wavelength	1100~1600nm&1550nm
Optical input power	0dBm~-10dBm(analog) 0dBm~-22dBm(digital)
Return loss	>45dB
Optical connector	FC/APC&SC/APC FC/PC&SC/PC
Bandwidth	40~862&1006MHz
Flatness	±0.75dB@40~862MHz&1006MHz
Rf output reflection	≥16dB@40~550MHz ≥ 14dB@550~860&1006MHz
Output level control	0~18dB
Output level	>80dBuV(AGC: @-9~+0dBm)
Output port	1
Output impedance	75 Ω
AGC range	-15dBm~-6dBm&-12dBm~-3dBm&-9dBm~0dBm
CNR	≥51dB
CTB	≥65dB
CSO	≥62dB
Supply voltage	DC5V
Adaptor voltage	AC220V
Internal voltage	DC5V
Working temperature	-25℃~+45℃
Consumption	<2W
Product dimension	11210628mm
Carton weight	1.26KG (10pcs)

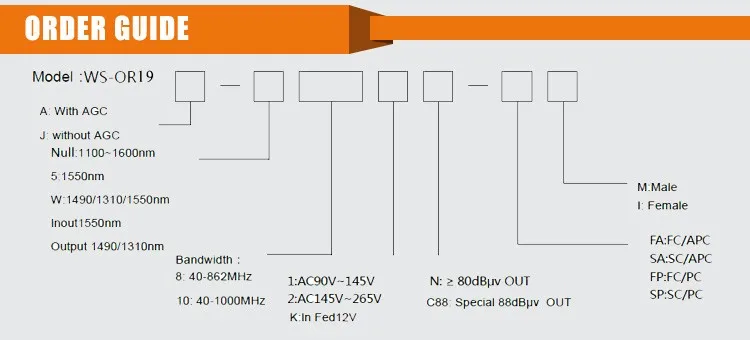

ftth ftth Model: WS-OR19A5-102N-FAM

Analysis According to Model:OR19 style AGC function, single 1550nm optical wave, bandwidth 40-1000MHz, AC220V power supply, output level≥80dBuV, optical connector: FC/APC, metric.

ftth

Price

Price US$ \ 10 ~ 15 / Piece

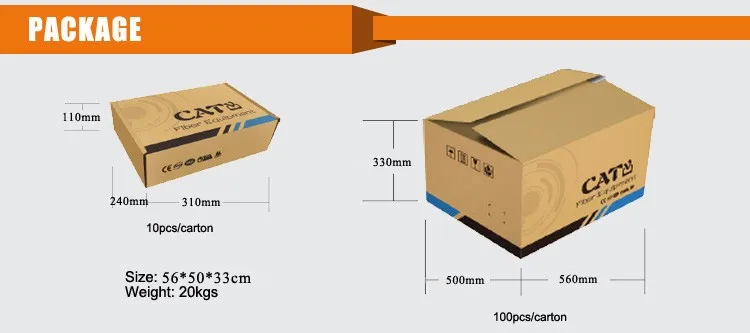

Packaging & Shipping

- Packing100
- Packaging Size31 x 24 x 11 ( Centimeters)
- Delivery Lead Time15
- Minimum Order 100 Piece
- Supply Ability10000
- Total quantity in Stock3001 – 5000
