OR18 Series Optical receiver is a home-based optical receiver for FTTH (fiber to the home) network optical fiber access terminal, in order to achieve analog or digital signal. The machine uses low-power optical detectors, GaAs and AGC technology to meet the needs of FTTH CATV reception. A variety of functional products in the application, slightly different.OR18A and OR18B pay attention to product economy practicability, among them OR18B has AGC control function, bring economical application to the user, the minimum that the digital signal receives is -15dBm; OR18C and OR18D pay attention to the product high performance index, possess AGC function, digital signal receive 0 ~ -18dBm.
OR18 FTTH optical receiver provides customers with a variety of options to meet the actual needs of different networks.
OR18A: Economic models, no AGC, the lowest digital signal reception -15dBm, the output level ≥ 100dBuv (PIN = 0dBm);
OR18B: Economic models, AGC range optional, the lowest digital signal receiver -15dBm, the output level ≥ 80dBuv (AGC: 0 ~ -9dBm)
OR18C: Economic + Performance: AGC range optional, the minimum digital signal reception-18dBm, the output level ≥ 73dBuv (AGC: 0 ~ -9dBm)
OR18D: High performance: AGC range optional, the lowest digital signal reception -18dBm, the output level ≥ 94dBuv (AGC: 0 ~ -9dBm)

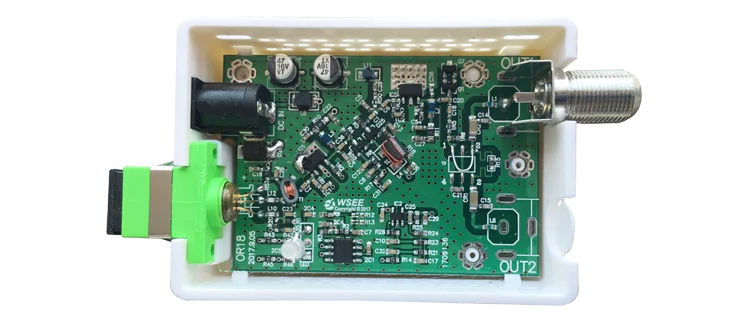

♦ High-quality plastic shell, through-hole design on both sides, good heat dissipation;
♦ RF channel full GaAs low noise amplifier. Digital signal minimum to meet -18dBm receiver, analog signal minimum to meet -10dBm receiver;
♦ With AGC function (AGC range can be customized);
♦ Anti-high-frequency surge protection device GaAs amplifier tube;
♦ Low-power design, the use of high-efficiency switching power supply to ensure that the power of high reliability and high stability. Overall power consumption is only 2W, with optical detection circuit;
♦ SC / APC & SC / PC & FC / APC & FC / PC optical connector options, male or female RF interface;
♦ Multi-level lightning protection device (TVS transient suppression diode), lightning protection system, to ensure the safe operation of equipment

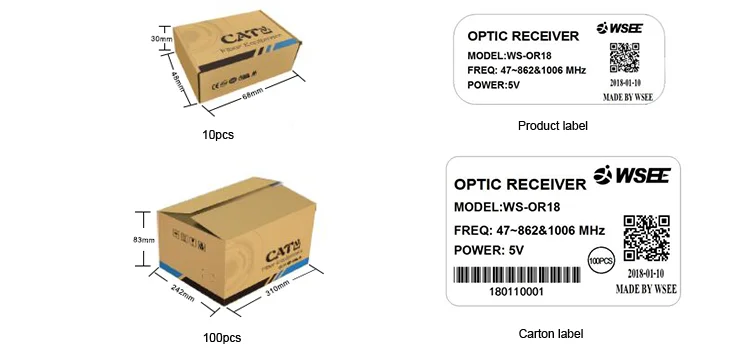

Size: 310mm*242mm*83mm
Weight: 1.2kg

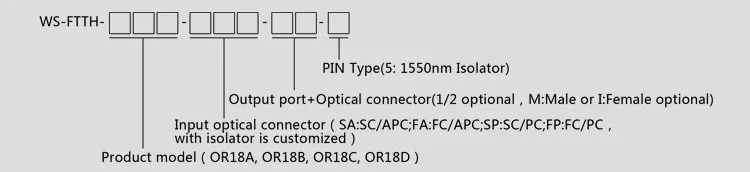

Example explanation: This device is Wan Shuo brand OR18 series FTTH, model D. Input optical connector is SC / APC. 2 outputs, metric RF connector. Only receive 1550nm.

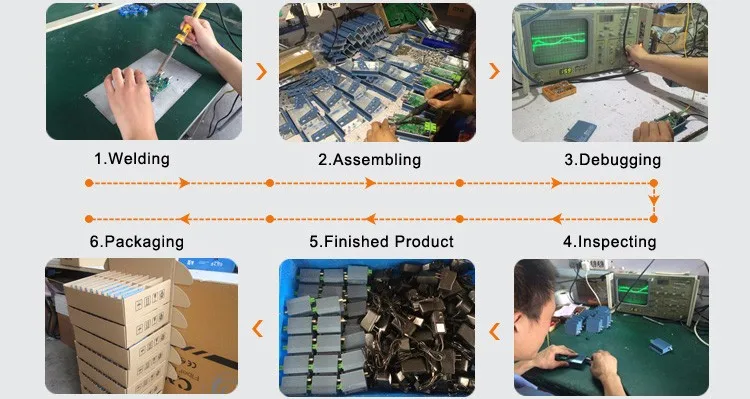

Welding-----Assembling-----Debugging-----Inspecting-----Finished Product-----Packaging
Shandong Wanshuo Optoelectronic Equipment Co., Ltd has been manufacturing CATV Optical equipment since 2008. We are located in Zibo City, Shandong Province, with convenient transportation access. Our company has become one of the biggest enterprises in the field of CATV equipment in China. We have been mainly engaged in designing, researching, manufacturing and marketing CATV HFC and FTTX network equipment, including EDFA, 1550nm/1310nm optical transmitters, optical receivers, FTTH optical node, CATV amplifiers, hybrid modules, power supplies and passive devices.
We have over 70 employees, an annual sales figure that exceeds USD3,300,000 and are currently exporting60% of our production worldwide.
After years of development, we have strong overall operational capabilities, rich experiences in international trade, and have made good relationship with many countries like USA, India, Vietnam, Spain, Romania, Ukraine and Russia, Peru, Colombia, African countries, etc.
Shandong Wanshuo Optoelectronic Equipment Co., Ltd always adheres to the "excellence, quality first" principle of the quality, taking the leading in passing I S O 9 0 0 1, CE certifications.
1. Warranty 1 years: Direction modulation optical transmitter、High power optical fiber amplifier、 Optical receiver、CATV trunk amplifier、FTTH optical receiver、EDFA、EYDFA.
2. Warranty 3 years: External modulation optical transmitter.
3. Bulk orders can deliver a certain number of wearing parts, such as power supplies, modules, etc.
4. The damaged products during warranty period, we can provide parts to replace or repair for free. Outside the warranty period, lifetime warranty, charge a maintenance costs, round-trip freight shall be borne by the buyer. Bulk orders if had provided a certain percentage of free maintenance parts, no warranty.
5. If the products appear batch problems, can be returned.
1. Are you a factory or trading company?As a professional manufacturer, we supply full CATV&HFC network products more than 10 years in China.
2. How about the payment terms?We accept bank transfer, western union, money gram, paypal.
3. What kind of warranty do you offer?Our excellent after-sale service team will provide to you with broader service plat form. We offer at lease one year warranty for our products without man-made damage.
4. How to ship the package?DHL, UPS, EMS, TNT, Fedex, by air, by sea.
5. What kind of warranty do you offer?
Our excellent after-sale service team will provide to you with broader service plat form. We offer at lease one year warranty for our products without man-made damage.
6. How about your product service?
We can offer OEM&ODM, print your brand, your desige on the product based on your quantity.
