Electronic Substrate,,Heat Sinks,Thermal Conductive Material,Al-SiC IGBT Base Plate

Add to Basket Share to :

Price

US$ 32.8

Min Order Quantity20 Piece
Supply Ability10000Pieces/per Month
Delivery Lead Time35days
Payment Terms 7
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.
* Date last updated : 2025.10.20

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Henan Hanyin Optoelectronics Technology Co., Ltd
Membership TradeVerify
Registration Date2025.06.30
Country/RegionChina
CityLuoyang
Contact Simon Hu(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Simon Hu

Henan Hanyin Optoelectronics Technology Co., Ltd

* Buying Product

Category : Electrical Ceramics

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Place of Origin China
- Supply Type OEM Service
- Condition New
- Material Aluminumbasedmaterials
- Type High Frequency Ceramics
- Related Keywords Electronic Substrate, Electronic Packaging, AlSiC, Ceramic Substrate

Description by Manufacturer

AlSiC was first used in the US radar chip substrate to replace tungsten copper. After the replacement, the heat dissipation effect is excellent, and the overall weight loss of the radar is 10 kg, which makes the aluminum-silicon carbide material attract attention.

High-current IGBT (Insulated Gate Bipolar Transistor) modules generate a large amount of heat during operation. The AlSiC material is usually used to fabricate the IGBT substrate, and the high-power IGBT module is firmly packaged, so that the chip can be used in vibration, high temperature and dust. The Aluminum Silicon Carbide IGBT Base Plate is very light, only has a 1/3 weight of the copper, but its bending strength is as good as the steel. This makes it excellent in seismic performance, exceeding the copper substrate.

Therefore, in high-power electronic packaging, Aluminum Silicon Carbide IGBT Base Plates are irreplaceable materials due to their unique combination of high thermal conductivity, low thermal expansion coefficient, and flexural strength.

Specification

Silicon Carbide	volume fraction 55 %
Density（g/cm³）	2.96
Elastic Modulus（GPa）	195±5
Bending Strength（MPa）	500
Tensile Strength （MPa）	310
Coefficient of Thermal Expansion（10-6/K）	9.5±1
Thermal Conductivity（W/m·K）	200±5

Product Features

-Adjustable coefficient of thermal expansion (CTE)

-Excellent thermal conductivity and heat dissipation performance

-Low density and high specific rigidity

-High rigidity and high strength Excellent thermal shock resistance

-Excellent wear resistance

-Surface Machinability and Metalization

Applications

-Electronic component thermal management

-High-precision machinery

-Aerospace industry

-Household appliances

-Transportation

-Power engineering

-Renewable energy

-Smart grid

-Traffic control

-Power conversion

-Industrial motors

-Power supplies

-Wind and solar equipment

-Frequency converters for automatic control

Price

Price US$ 32.8 / Piece

Packaging & Shipping

- PackingCarton or Wooden Crate
- Delivery Lead Time35days
- Minimum Order 20 Piece
- Supply Ability10000Pieces/per Month
- Total quantity in Stock1001 – 1500
- Shipping Career

Product Image

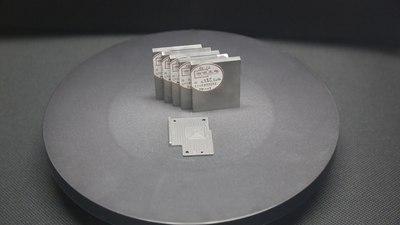

Electronic Substrate,,Heat Sinks,Thermal Conductive Material,Al-SiC IGBT Base Plate

Electronic Substrate,,Heat Sinks,Thermal Conductive Material,Al-SiC IGBT Base Plate 2

Electronic Substrate,,Heat Sinks,Thermal Conductive Material,Al-SiC IGBT Base Plate 3

Electronic Substrate,,Heat Sinks,Thermal Conductive Material,Al-SiC IGBT Base Plate 4

Electronic Substrate,,Heat Sinks,Thermal Conductive Material,Al-SiC IGBT Base Plate 5
