G0307 Industrial Modbus Protocol To Profibus PA Protocol Gateway

Add to Basket Share to :

Price

US$ 370

Min Order Quantity1 Piece
PortShenyang
Delivery Lead Time 7 days for ready goods
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Microcyber Corporation
Membership Free member
Registration Date2020.02.21
Country/RegionChina
CityShenyang
Contact balinda guo(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Microcyber
- Model Number G0307
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Black
- Related Keywords Modbus to Profibus PA, Protocol Gateway

Description by Manufacturer

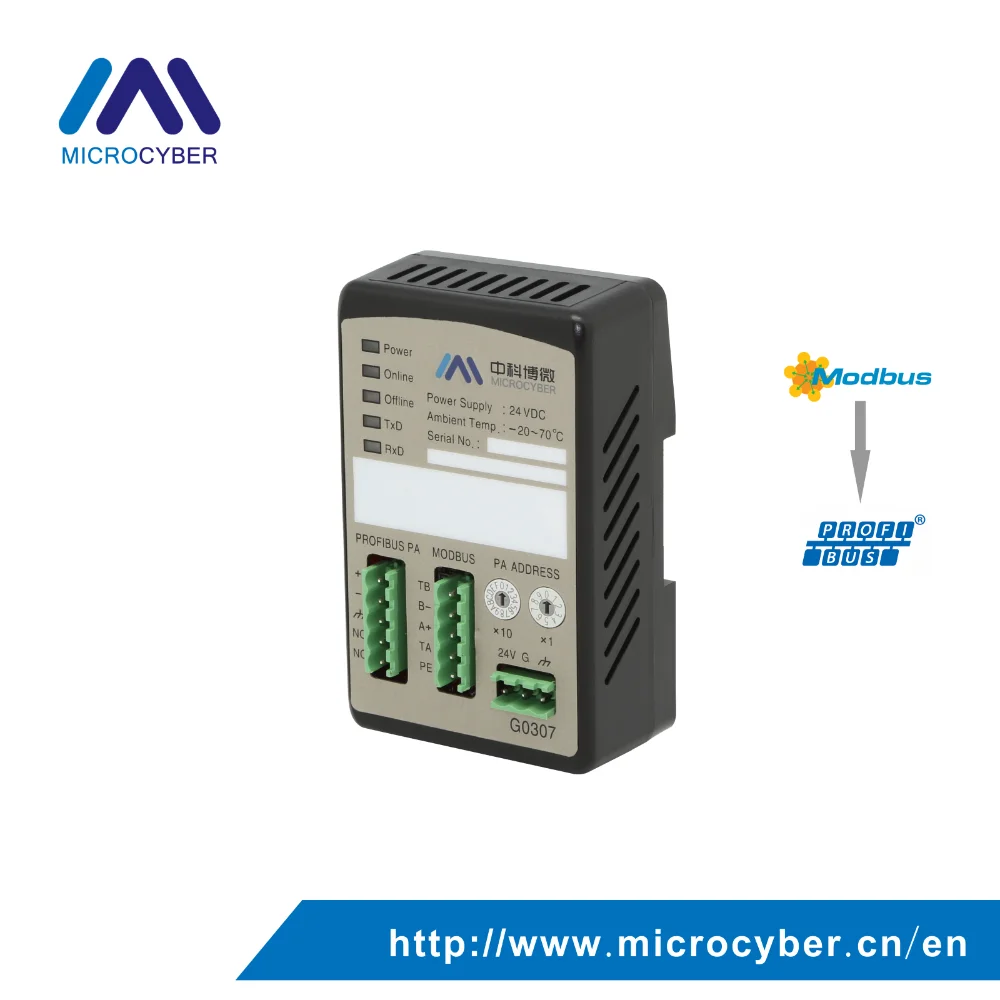

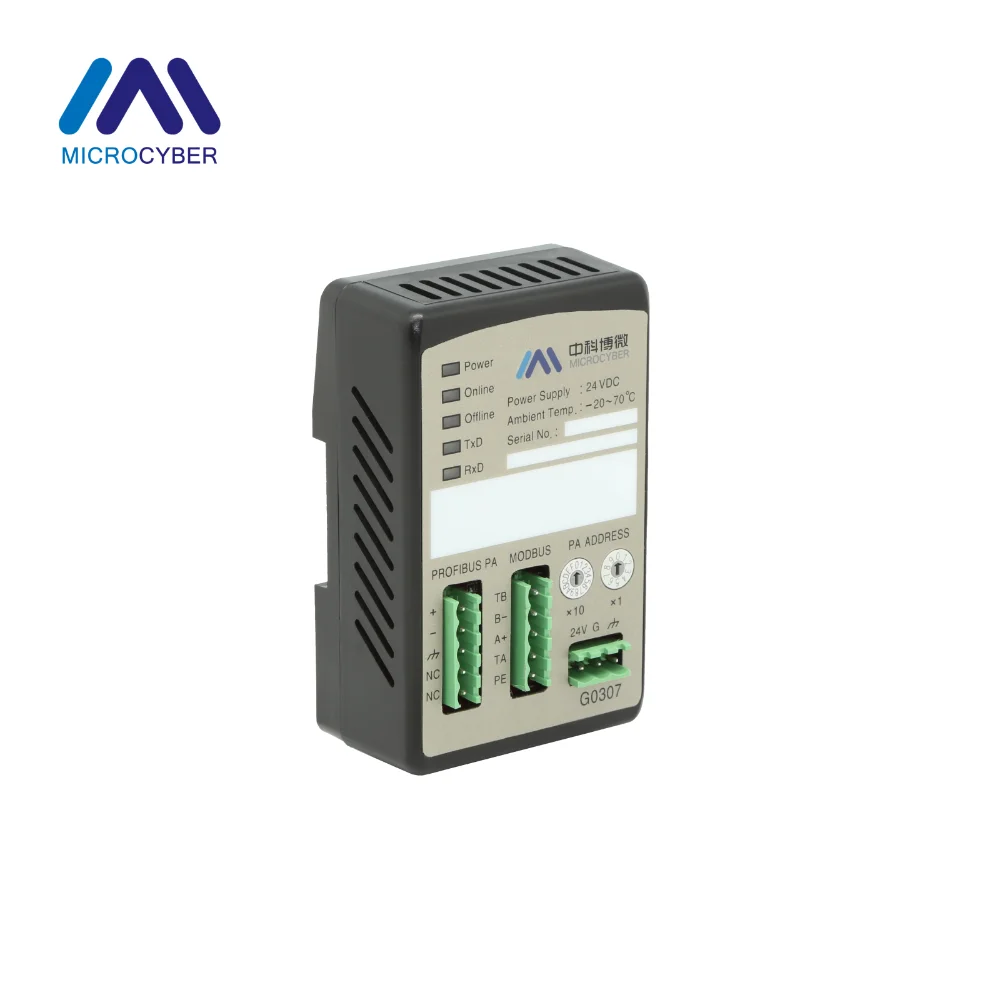

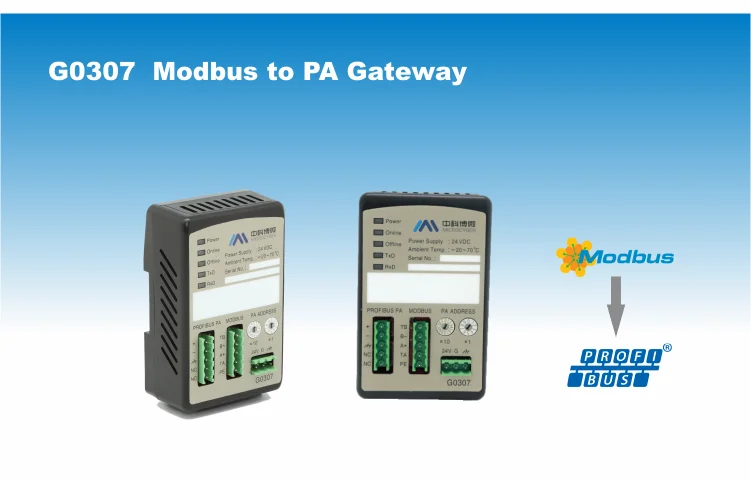

G0307 industrial Modbus protocol to Profibus PA protocol gateway

G03071 G03075 G03074 G03073 G03072 G03071 G0307() G03071

Product Description

NCS-MP105 is converter for interfacing Modbus- RTU instruments to a Profibus PA network.
Support PROFIBUS DPV1 and PROFIBUS PA 3.01
Support AI, AO, DI, DO standard function blocks
Support GSD5.0 and standard EDD
Support standard DD or EDD specification

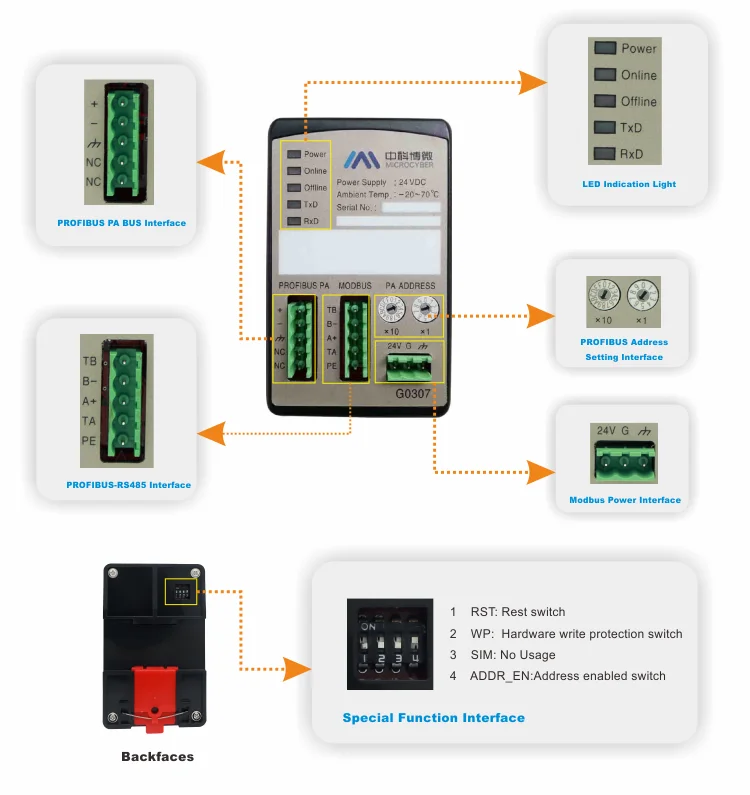

Electrical interface connected with MODBUS device supports TTL level, RS485 and RS232
Able to provide 3.3V or 5V power supply output

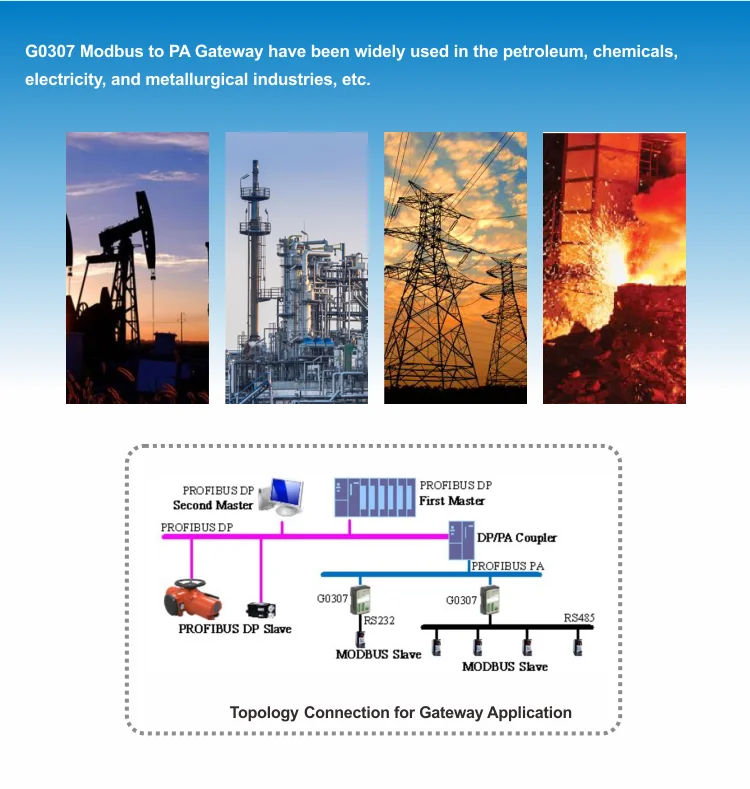

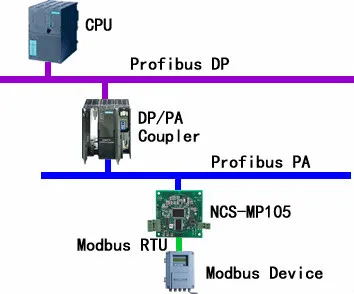

NCS-MP105 is a converter device for MODBUS- RTU protocol to PROFIBUS PA protocol. It is able to integrate device/board with MODBUS communication interface to PROFIBUS PA bus system. Bus power supply is selected by NCS-MP105, and NCS-MP105 can provide power supply to the boards the user provides.

As a MODBUS host, NCS-MP105 communicates with the device with MODBUS-RTU interface, it can achieve read/write operation for MODBUS register data via PA transducer blocks, and convert MODBUS data to PA communication system via PA standard AI,AO,DI,DO function blocks.

NCS-MP105 Application:

Gas detectors
Analyzers
Positioners
Any smart device with MODBUS protocol

Physical Parameters

Bus signal: compliant with IEC61158-2 physical layer standard

Bus power supply: 9 ~ 32V

Operating temperature: -40 ~ 85°C

Static current: ≤14mA

Humidity range: 5% ~ 95%,non-dew

Mechanism size: diameter 66mm(can be customized)

Supportive MODBUS Communication Parameters

Address: 1 ~ 255

Baud rate: 9600 / 19200 / 15625 / 31250 /62500 / 125000 bps

Data bit: 7 / 8 bits

Calibration: odd / even calibration

Stop bit: 1 / 2 bits

CRC calibration: low byte ahead / high byte ahead

Data format: support various data formats

Supportive MODBUS Function Code

Function Code 1: read loop status

Function Code 2: read discrete input status

Function Code 3: read keeping register value

Function Code 4: read input register value

Function Code 6: write loop

Function Code 16:write multiple register values

Price

Price US$ 370 / Piece

Packaging & Shipping

- Packing1 piece per box
- Packaging Size15 x 15 x 10 ( Centimeters)
- Package Weight 0.2 ( Kilograms )
- Delivery Lead Time 7 days for ready goods
- Minimum Order 1 Piece
- Total quantity in Stock101 – 150
- Delivery PortShenyang
- Shipping Career

Product Image

G0307 Industrial Modbus Protocol To Profibus PA Protocol Gateway
