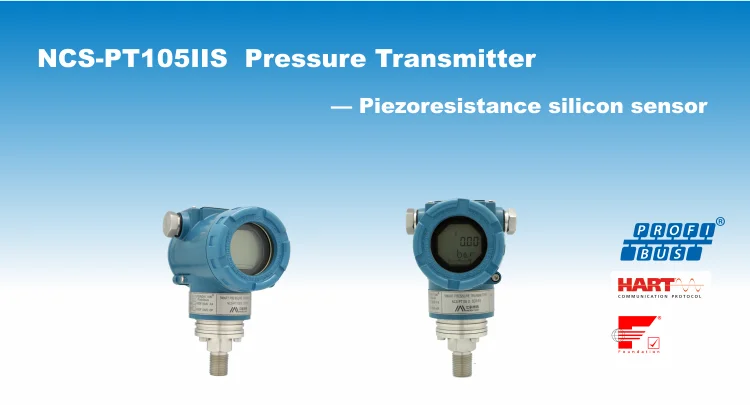

Explosion-proof Piezoresistive Diffusion Silicon Oil 4-20mA HART Digital Pressure Transmitter

Add to Basket Share to :

Price

US$ 281

Min Order Quantity1 Piece
PortShenyang
Delivery Lead Time7 days for ready goods
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Microcyber Corporation
Membership Free member
Registration Date2020.02.21
Country/RegionChina
CityShenyang
Contact balinda guo(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name MICROCYBER
- Model Number NCS-PT105S
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Black
- Related Keywords Pressure Transmitter, HART 4-20mA

Description by Manufacturer

Explosion-proof Piezoresistive Diffusion Silicon Oil 4-20mA HART Digital Pressure Transmitter from China

NCSPT105IIS1

Product Overview

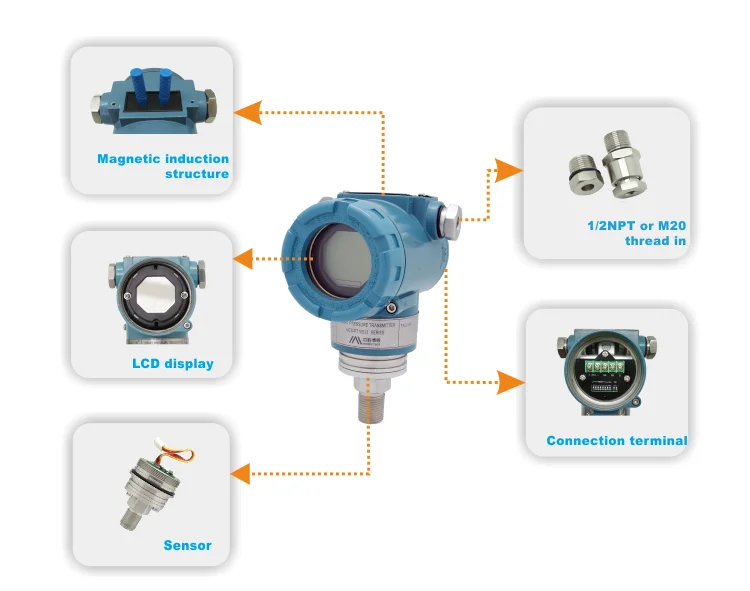

NCS-PT105IIS series Smart Pressure Transmitter with advanced, mature, reliable Piezoresistive Silicon Sensors has been designed meticulously by combining advanced microprocessor technology and digital capacitance measurement techniques. The powerful functions and high-speed computing capability of the microprocessor make it have excellent qualifications such as intelligent, high-precision, high reliability, stable zero and so on. Its LCD can display many physical parameters such as pressure, temperature, current. It can be realized zero adjustment, range settings and other features by key-press operation, and easy to on-site tests.

NCS-PT105IIS series Smart Pressure Transmitter supports HART, FF H1, Profibus PA, Profibus DP protocol and can measure pressure, differential pressure, liquid level, flow, and other industrial parameters. It can be widely used in the petroleum, chemicals, electricity, and metallurgical industries, etc.

Features

Performance up to 0.075% of accuracy
Gauge pressure, absolute pressure
Automatically environmental temperature compensation
Parameters can be set by magnetic sticks, communicator, HOST software
Measurement media: liquid, gas and stream
HART®, FOUNDATION™ Fieldbus, PROFIBUS®
Up to ±0.1% of Upper Range Limit (URL) for 1 year

Details

Specification

Type Selection

Model	Type
NCS-PT105IIS SG	Gauge Pressure Transmitter
NCS-PT105IIS SA	Absolute Pressure Transmitter

Parameters

Parameter	Value
Accuracy	Up to ±0.075% of span
Stablity	Up to ±0.1% of Upper Range Limit (URL) for 1 year
Warranty	Up to 2-year limited warranty
Range Rate	20°C, range rate 10:1
Measurement Range	Up to 35kPa differential
Output	Gauge pressure, absolute pressure (scaled variable)
Communication Protocol	HART®, FOUNDATION™ Fieldbus, PROFIBUS®
Process Wetted Material	316L
Diagnostics	Sensor, storage, communication; software/hardware failure alarm
Explosion-proof	Ex ia II C T4 Ga, Ex d II C T4/T6 Ga, IP65
Certifications/Approvals	Explosion-proof certified

Size

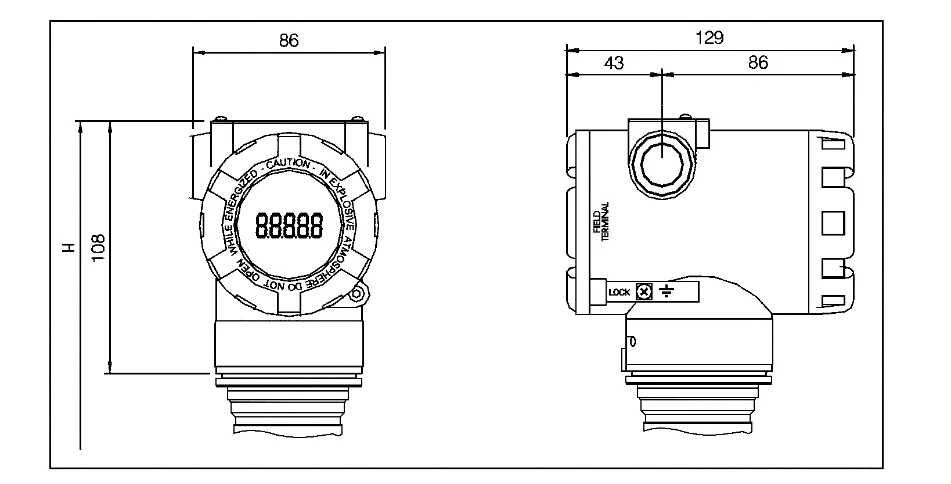

Smart Transmitter Size(Unit:mm)

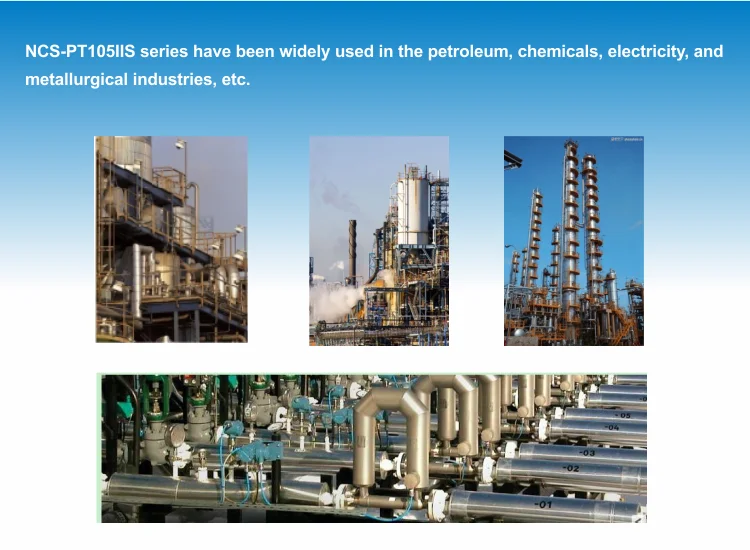

Application

Packaging & Shipping

Price

Price US$ 281 / Piece

Packaging & Shipping

- Packing2 pieces per box
- Packaging Size20 x 20 x 35 ( Centimeters)
- Package Weight 7 ( Kilograms )
- Delivery Lead Time7 days for ready goods
- Minimum Order 1 Piece
- Total quantity in Stock101 – 150
- Delivery PortShenyang
- Shipping Career

Product Image

Explosion-proof Piezoresistive Diffusion Silicon Oil 4-20mA HART Digital Pressure Transmitter

Pressure Transmitter Related Products

Main Export Markets

- Microcyber Corporation is mainly exporting to Asia, Europe, North America, South America

Company Profile

About Microcyber Corporation

Membership Free member
Registration Date2020.02.21
Country/RegionChina
CityShenyang
Contact balinda guo(Ms.)

Microcyber Corporationestablished as a high-tech enterprise by the Shenyang Institute of Automation Chinese Academy of Sciences, mainly engages in advanced industrial control systems, equipments, instruments and chips for industrial process automation control solutions in the research, development, production and application. Microcyber undertakes a number of national scientific and technical key task, and has Liaoning Province networked control systems engineering research center.

Selling Categories

- Measurement & Analysis Instruments >> Pressure Measuring Instruments

Keywords

pressure transmitter

Registration Date	2020/02/21(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2003
Employees total	101 - 500
Annual revenue	USD 10,000,001 - 50,000,000

Contact Information Order Credit Report

Company	Microcyber Corporation
Address	Wensu StreetShenyangLiaoning110179China
Phone	86 - 024 - 31217278
Contact	balinda guo
