G1013 HART Protocol (4-20mA) To FF Protocol Smart Gateway (Converter)

Add to Basket Share to :

Price

US$ 399

Min Order Quantity1 Piece
PortShenyang
Delivery Lead Time7 days for ready goods
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Microcyber Corporation
Membership Free member
Registration Date2020.02.21
Country/RegionChina
CityShenyang
Contact balinda guo(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Ms.balinda guo

Microcyber Corporation

* Buying Product

Category : Other Telecommunications Products

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Microcyber
- Model Number G1013
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Black
- Related Keywords Protocol Gateway, HART to FF

Description by Manufacturer

G1013 HART protocol (4-20mA) to FF protocol Smart Gateway (Converter)

Product Overview

G1013 HART to FF Gateway, designed by Microcyber Corporation is a gateway device converting from HART to FF protocol. As HART master, G1013 HART to FF Gateway communicates with HART slave via standard HART bus, it can convert HART device data to FF function block data output. HART device can be convenient and quick access to FF fieldbus system.

Features

Connect 4 HART slave devices at most
Support HART 7.0 master protocol
Support 4-channel AI per device, totally 16 channels
Support 4 AI and 1 PID function blocks
Support ITK6.1.1, support function block diagnose
HART physical interface FSK, communication rate 1200bps
Provide standard DD, CFF files and communicator DD files
DIN rail installation, easy maintenance and configuration, transparent data transmission
Conveniently realize old device reform, protect investment

Details

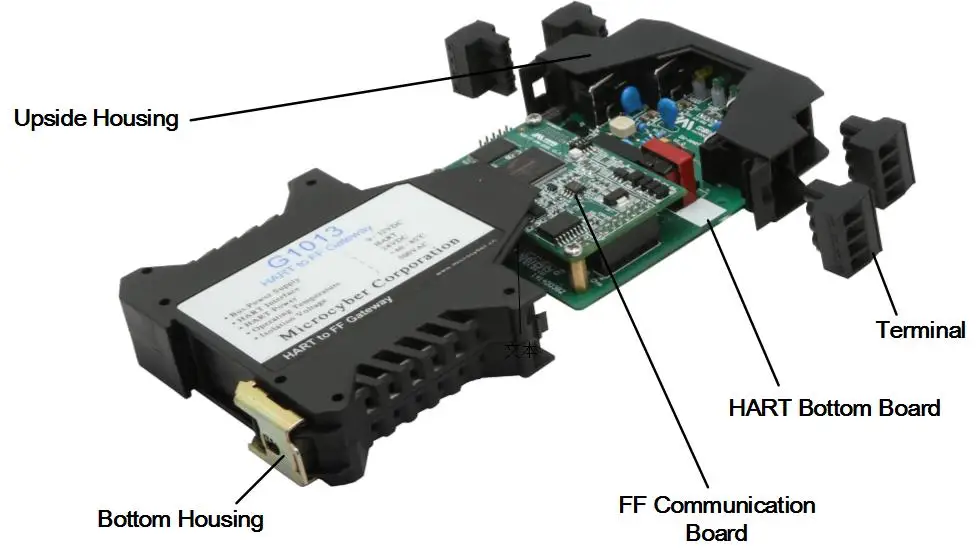

Whole Structure of Gateway Device

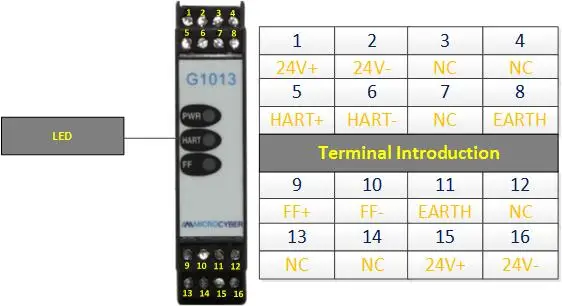

Terminal Definition of G1013 HART to FF Gateway

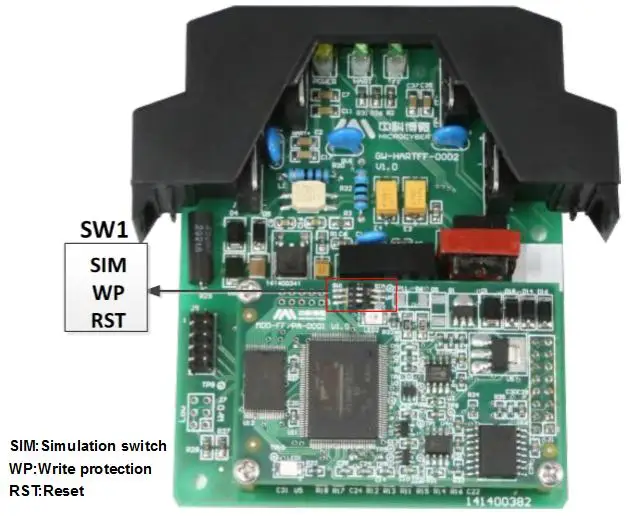

DIP Switch of G1013 HART to FF Gateway

Specification

Parameters

Parameter	Value
Working Temp.	-20 ... +70 °C
Storage Temp.	-40 °C ... +85 °C
Power Supply	9 … 36V / 14 mA 24 V
Dimension (L x W x H)	114.5 x 22.5 x 99 mm (without connector)
Interface	RS485
Indicator Light	SYS, APL, L/A, Rx/Tx, bus-specific
Weight	150 g
Protocol before conversion	HART
Protocol after conversion	FF; IEC61158
EMC	GB/T 18268.1
Noise Interference	GB 9254
Installation	DIN-Rail, EN-50022 35mm x 7,5mm

Selection

GW-HART-FF	G1013 HART to FF Gateway
	Code	Hardware Interface
	F	FSK(1200kbs)
		Code	Software Interface
		M	HART Master

GW-HART-FF F M ——Selection Example

Size

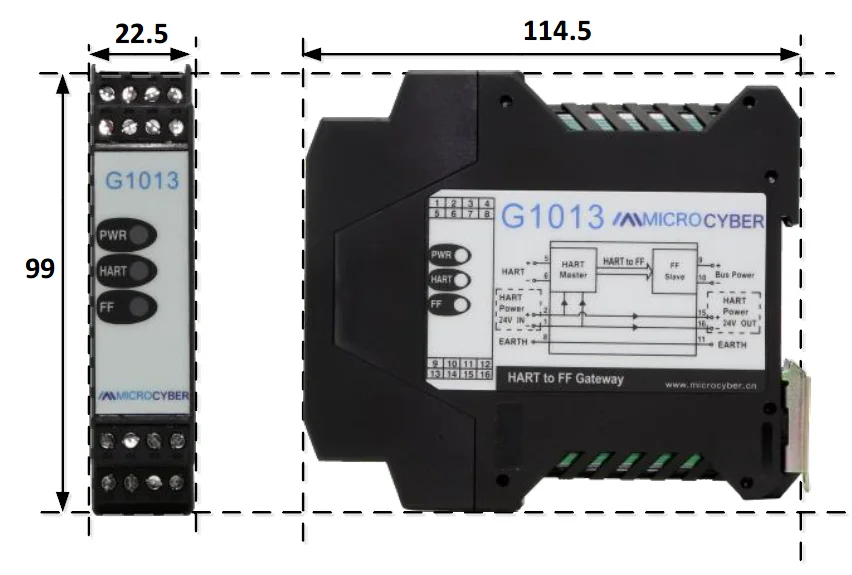

Size of G1013 HART to FF Gateway (Unit:mm)

Product Related

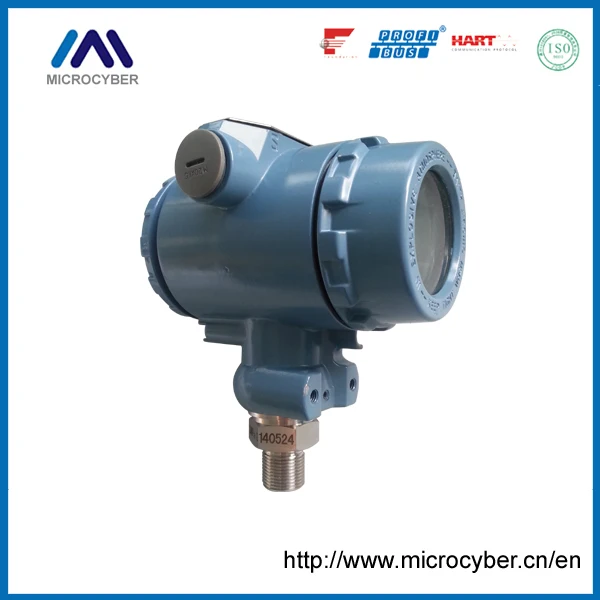

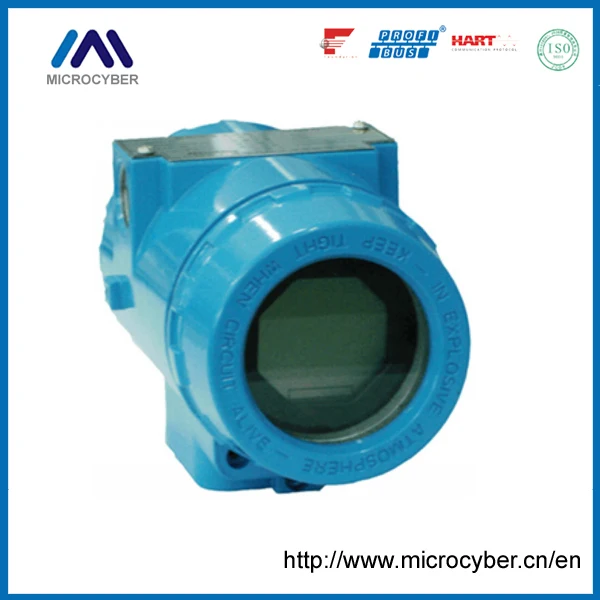

Microcyber NCS-PT105IIS Pressure Transmitter (diffused silicon sensor)	Microcyber NCS-TT105 Smart Temperature Transmitter

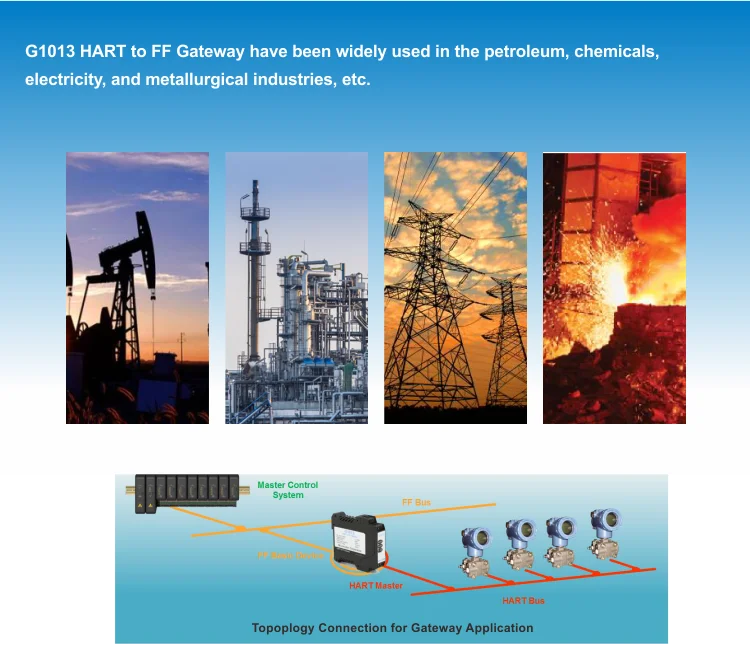

Application


Packaging & Shipping

Price

Price US$ 399 / Piece

Packaging & Shipping

- Packing1 piece per box
- Packaging Size15 x 15 x 10 ( Centimeters)
- Package Weight 0.1 ( Kilograms )
- Delivery Lead Time7 days for ready goods
- Minimum Order 1 Piece
- Total quantity in Stock51 – 100
- Delivery PortShenyang
- Shipping Career

Product Image

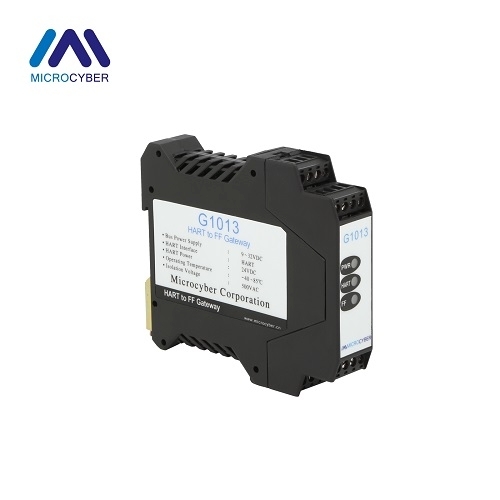

G1013 HART Protocol (4-20mA) To FF Protocol Smart Gateway (Converter)

Protocol Gateway Related Products

Main Export Markets

- Microcyber Corporation is mainly exporting to Asia, Europe, North America, South America

Company Profile

About Microcyber Corporation

Membership Free member
Registration Date2020.02.21
Country/RegionChina
CityShenyang
Contact balinda guo(Ms.)

Microcyber Corporationestablished as a high-tech enterprise by the Shenyang Institute of Automation Chinese Academy of Sciences, mainly engages in advanced industrial control systems, equipments, instruments and chips for industrial process automation control solutions in the research, development, production and application. Microcyber undertakes a number of national scientific and technical key task, and has Liaoning Province networked control systems engineering research center.

Selling Categories

- Measurement & Analysis Instruments >> Pressure Measuring Instruments

Keywords

pressure transmitter

Registration Date	2020/02/21(Year/Month/Date)
Buyer / Seller in EC21	Seller
Business Type	Manufacturer
Year established	2003
Employees total	101 - 500
Annual revenue	USD 10,000,001 - 50,000,000

Contact Information Order Credit Report

Company	Microcyber Corporation
Address	Wensu StreetShenyangLiaoning110179China
Phone	86 - 024 - 31217278
Contact	balinda guo
