Description by Manufacturer

G03131

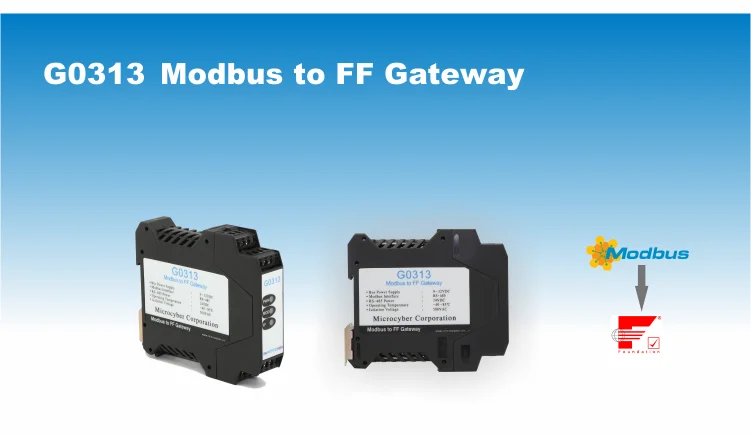

Product Overview

G0313 realizes converting from Modbus RTU to FF H1. G0313 can effectively reduce development difficulty to transform from Modbus device to FF device, easily upgrade Modbus RTU device. Sophisticated design, easily installed on DIN rail in control box or protection box on site. To connect Modbus slave device via simple configuration, so as to realize converting from Modbus RTU to FF. One gateway can take at most four Modbus RTU slave devices, cost-effective. To judge whether G0313 works in normal by LED indicators during field application.

Features

Support 4 Modbus RTU slave devices’ access at most
Support AI/AO/DI/DO, each support 8 channels
1 Modbus transducer block
4 PID function blocks
1 RES function block tallied with FF standard
Modbus RTU device upgrade
Side wiring diagram and parameter description
DIN rail installation
Working status indicating LED

Details

Whole Structure of Gateway Device

Terminal Definition of G0313 Modbus to FF Gateway

G03133

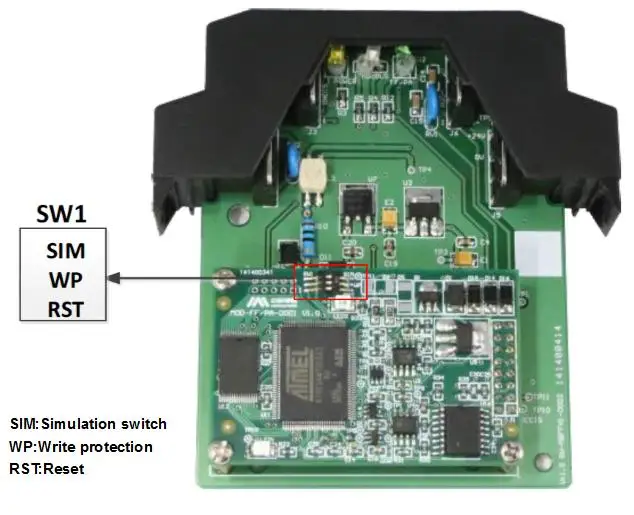

DIP Switch of G0313 Modbus to FF Gateway

Specification

Parameters

Parameter	Value
Working Temp.	-20 ... +70 °C
Storage Temp.	-40 °C ... +85 °C
Power Supply	9 … 36 V / 14 mA 24 V
Dimension (L x W x H)	114.5 x 22.5 x 99 mm (without connector)
Interface	RS485
Indicator Light	SYS, APL, L/A, Rx/Tx, bus-specific
Weight	150 g
Protocol before conversion	Modbus
Protocol after conversion	FF
EMC	GB/T 18268.1
Noise Interference	GB 9254
Installation	DIN-Rail, EN-50022 35mm x 7,5mm

Selection

GW-MODB-FF	G0313 Modebus to FF Gateway
	Code	Hardware Interface
	R4	RS485
		Code	Software Interface
		M	Modbus RTU

GW-MODE-FF R4 M ——Example

Size

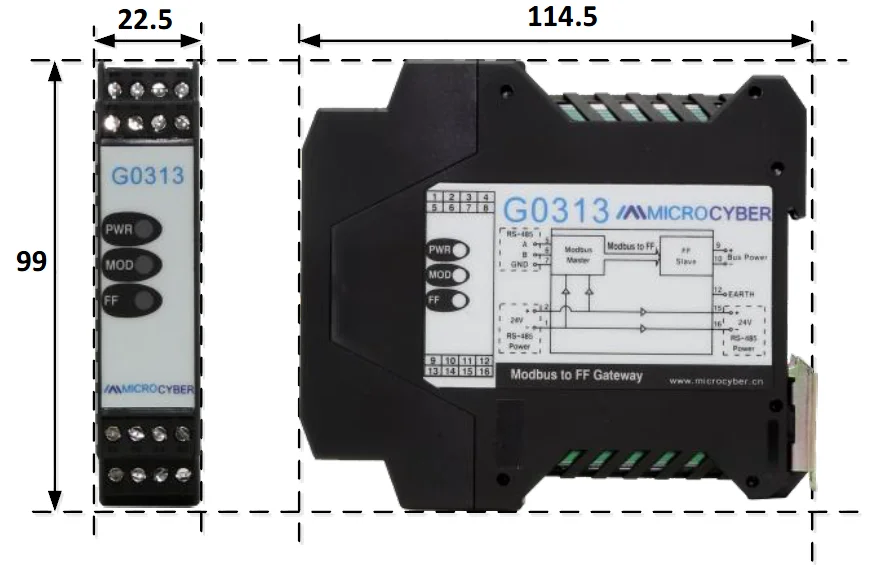

Size of G0313 Modbus to FF Gateway (Unit:mm)

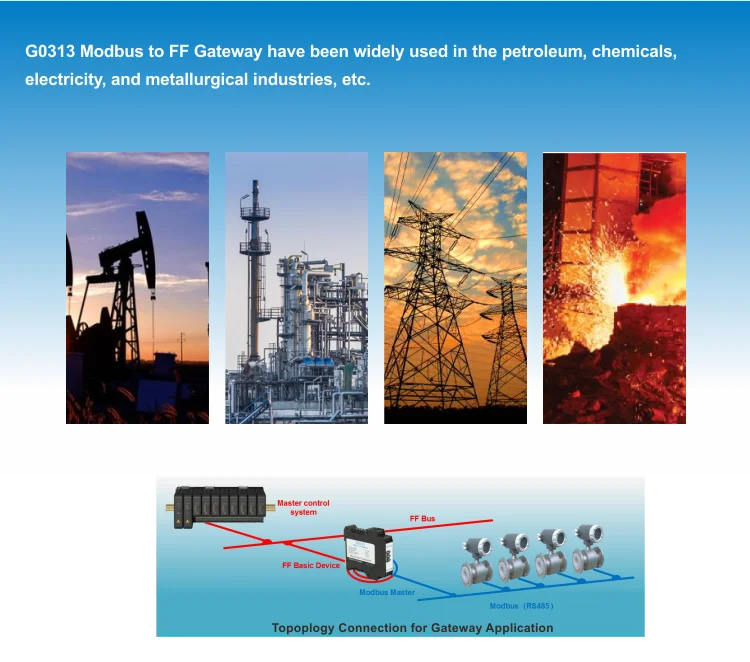

Application


Price

Price US$ 370 / Piece

Packaging & Shipping

- Packing1 piece per box
- Packaging Size15 x 15 x 10 ( Centimeters)
- Package Weight 0.1 ( Kilograms )
- Delivery Lead Time7 days for ready goods
- Minimum Order 1 Piece
- Total quantity in Stock51 – 100
- Delivery PortShenyang
- Shipping Career
