G0310 Modbus Protocol Supported RS485/RS232/TTL To HART Protocol 4-20ma Analog External Gateway

Add to Basket Share to :

Price

US$ 190

Min Order Quantity1 Piece
Supply Ability1000 piece per month
PortShenyang
Delivery Lead Time7 days
Payment Terms 1
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Microcyber Corporation
Membership Free member
Registration Date2020.02.21
Country/RegionChina
CityShenyang
Contact balinda guo(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Microcyber
- Model Number G0310
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Black
- Related Keywords Modbus to HART Gateway, RS232 to HART, RS485 to HART

Description by Manufacturer

Product Overview

G0310 Modbus to HART Gateway, designed by Microcyber Corporation is a gateway device for Modbus-RTU protocol and HART protocol. As Modbus master, G0310 Modbus to HART Gateway communicates with devices that have Modbus-RTU communication function via RS485 interface. It can convert device data to HART device variables output, and it also supports 4~20mAcurrent output.

Features

Be tallied with HART7.0
HART slave and Modbus master mode
4~20mA analog signal overlay HART digital signal
Support 1 Modbus slave device
Support 6 device variables and 4 dynamic variables
Configure gateway by HART interface
Write protect user data
Support high/low alarm current
RS485 Modbus interface
LED power and communication indicating
Standard DIN rail installation

Details

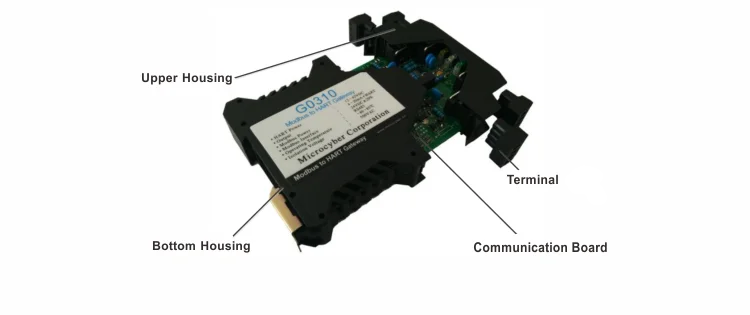

Whole Structure of Gateway Device

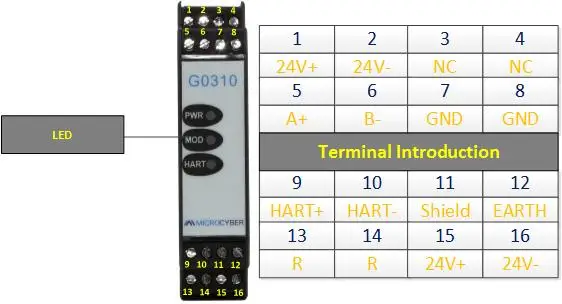

Terminal Definition of G0310 Modbus to HART Gateway

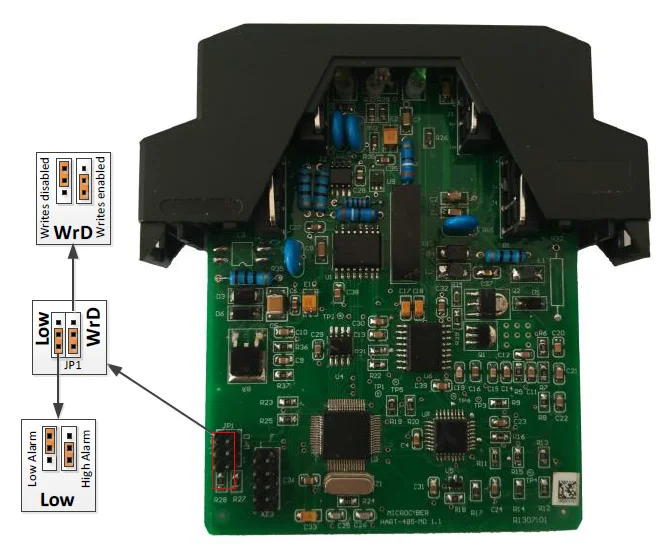

G0310 Modbus to HART Gateway jumper

Specification

Parameters

Parameter	Value
Working Temp.	-20 ... +70 °C
Storage Temp.	-40 °C ... +85 °C
Power Supply	12 … 42 V

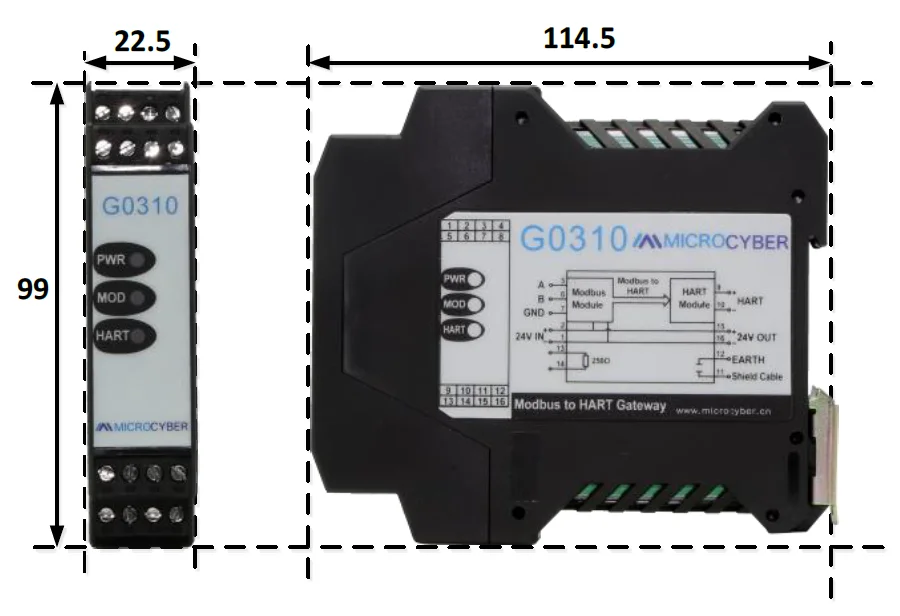

Dimension (L x W x H)	114.5 x 22.5 x 99 mm (without connector)
Interface	RS485
Indicator Light	SYS, APL, L/A, Rx/Tx, bus-specific
Weight	150 g
Protocol before conversion	Modbus
Protocol after conversion	HART
EMC	GB/T 18268.1
Noise Interference	GB 9254
Installation	DIN-Rail, EN-50022 35mm x 7,5mm

Selection

GW-MODB-HART	G0310 Modebus to HART Gateway
	Code	Hardware Interface
	R4	RS485
		Code	Software Interface
		M	Modbus RTU

GW-MODE-HART R4 M ——Selection Example

Size

Price

Price US$ 190 / Piece

Packaging & Shipping

- Packing1 piece per box
- Packaging Size11 x 3 x 10 ( Centimeters)
- Package Weight 0.2 ( Kilograms )
- Delivery Lead Time7 days
- Minimum Order 1 Piece
- Supply Ability1000 piece per month
- Total quantity in Stock21 – 50
- Delivery PortShenyang
- Shipping Career

Product Image

G0310 Modbus Protocol Supported RS485/RS232/TTL To HART Protocol 4-20ma Analog External Gateway
