High Speed LED Pick and Place Machine NEODENL460 with Auto Internal Rails,2835,5050

Add to Basket Share to :

Price

US$ 11000 ~ 12000

Min Order Quantity1 Set
Supply Ability300 sets per month
PortChina mainland
Delivery Lead Timein 7 working days
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Neoden Tech Co.,Ltd
Membership Free member
Registration Date2013.07.30
Country/RegionChina
CityHangzhou
Contact Tonny Chen(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Tonny Chen

Neoden Tech Co.,Ltd

* Buying Product

Category : Electronic Products & Components Processing

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name Neoden Tech
- Model Number NeoDenL460
- Place of Origin China
- Related Keywords High Speed, LED Pick Place Machine, Auto Internal Rails, neodenL460

Description by Manufacturer

High Speed LED Pick and place machine NeodenL460 with auto internal rails,2835,5050

The NEW NeoDenL460 is a highly productive pick and place machine with flying vision. As is built for speed, especially designed for LED board production, it features a faster XY motor and tape feeders, as well as the new head that achieves 18,000 chips per hour. The NeoDenL460 supports parts from 0603 to LQFP80 being used in mass production with high accuracy.

Application industry: household appliances industry, auto electronics industry, power industry, LED industry, security, instruments and meters industry, communication industry, intelligent control industry, internet industry of things and
military industry, etc..
-1 -1

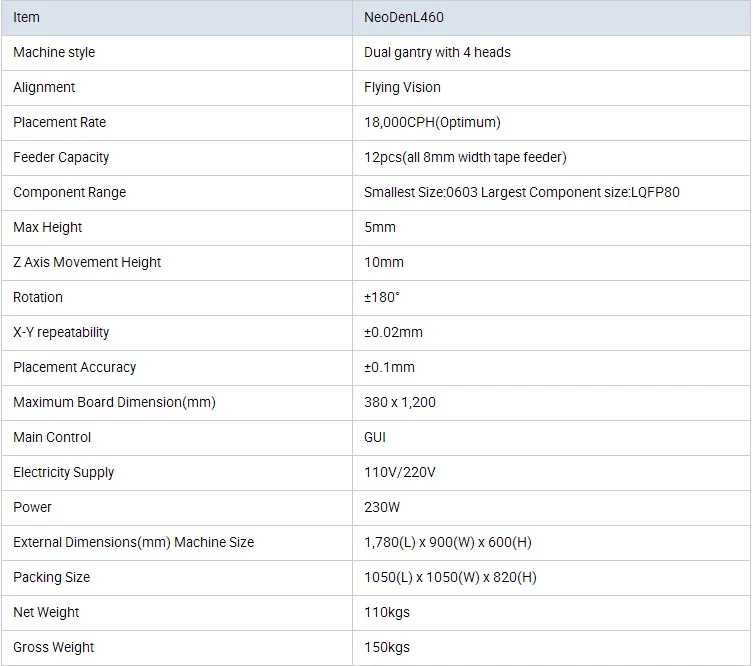

Parameters:
NeoDenL460 Spec

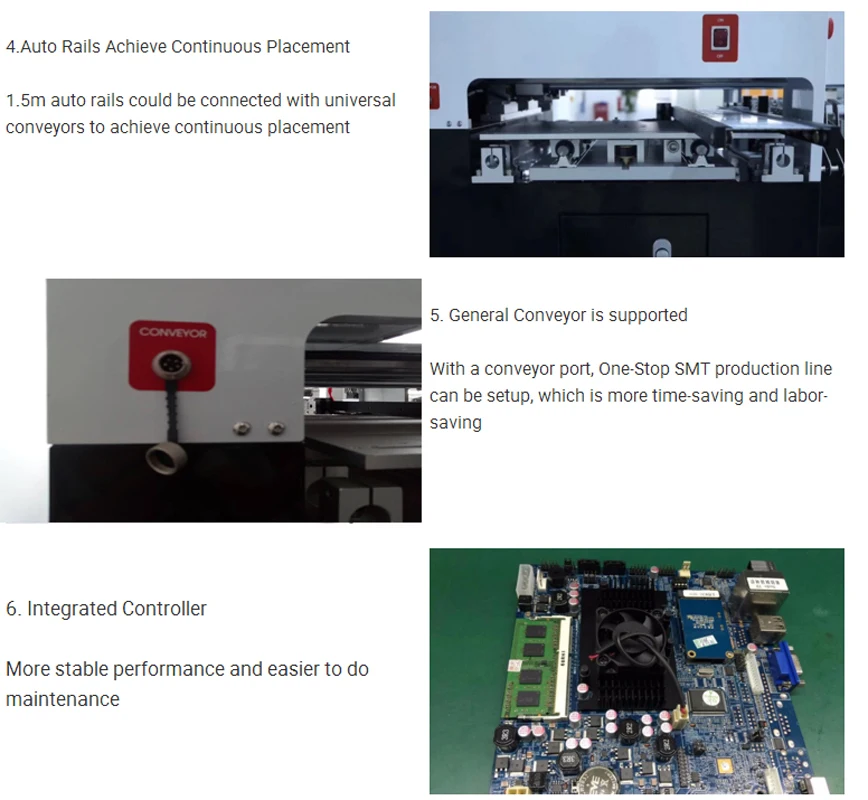

Main Features

features features-1

Certifications:

Established in 2010, NeoDen Technology Co.,Ltd., is a high-tech corporation located in Hangzhou, China. Our primary products are desktop automatic pick and place machines. In China, we are the leader in this technology with CE and more than 30 patents registered.

Mounting Effect:
1258

Why Choose NeoDen:

1.Light weight body,occupy small area

2.User friendly interface,no need professional SMT engineer,entry-level device

3.High integrated,no need extra pump or any supporting facility

4.High accuracy and reliability,make up the defection of manual work

5.Low cost,reduce expense to own a professional automatic SMT production line

6.International express with door to door service,3-5 working days delivery

7.Especial for laboratory research and development,samples,to avoid any patents and designs revealment

Accessories:
1) Pick and Place Machine NeoDenL460: 1
2) Nozzle: Totally 6 (CN065=1,CN100=4,CN140=1)
3)8G Flash Drive:1
4)Power Cord(5M): 1
5)Video training course: 1
6)Double Sided Adhesive Tape: 2
7)Allen wrench Set:5
8)Tool Box:1
9)Reel holder stand:1
10)Rail Extension Parts(25cm):4
11)Safe Fence(25cm):Elbow fitting HJ-18: 8 units; Fence Pipe Fixed Shaft:4 units
12)Universal Parts of Protective Fence:Red clad pipe D2inc-445:4 units;Barrel connector HJ-15: 4 units
13)Silicone tube:0.5m
14)Nozzle Cleaning Needle:1pack
15)Nozzle rubber 0.3mm & 0.6mm & 1.0mm: 5 units/each size
16)Fuse (3A):2pcs
17)Rail Extension Fixed Block:4 units
18)Feed Tool:1set 12V5A Power Adapter:1Unit 12V5A Power Adapter Power Cord:1Unit Tape Reel Load Tool :1Unit
19)Monitor Fixed Stand:1Unit
20)Keyboard Tray :1Unit
21)M6 Ball Screw :5Unit
22)PCB Back-up Module: 4Units

Packing:
Packing

Warranty:
The complete machine has a warranty period of TWO year from the time of purchase and lifelong service support as well as a long-term factory price supply. We provide online Q/A and trouble shooting support and technical advice service.

HTB1DDKcg5MnBKNjSZFoq6zOSFXaF

Thank you very much for your support on Neoden Tech's machines.

Price

Price US$ \ 11000 ~ 12000 / Set

Packaging & Shipping

- Packingwooden case
- Packaging Size105 x 105 x 82 ( Centimeters)
- Package Weight 150 ( Kilograms )
- Delivery Lead Timein 7 working days
- Minimum Order 1 Set
- Supply Ability300 sets per month
- Delivery PortChina mainland

Product Image

High Speed LED Pick and Place Machine NEODENL460 with Auto Internal Rails,2835,5050

High Speed Related Products

Company Profile

About Neoden Tech Co.,Ltd

Membership Free member
Registration Date2013.07.30
Country/RegionChina
CityHangzhou
Contact Tonny Chen(Mr.)

Technical Parameters
Version TM220A
Applicable PCB 20mm*20mm~220mm*200mm
Placement head quantity 2
Max mounting capability 7000PCS/h
Positioning accuracy ?.025mm
Applicable Components 0402-5050,SOP, QFN, IC
Components supply configuration Tape reel, bulk package (IC)
Tape width 8mm, 12mm, 16mm
Feeders 16 (8mm=12, 12mm=2, 16mm=1, bulk IC=1)
External Dimension L 830mm? 455mm? 285mm
Vacuum pump -92KPA (Mute type pump)
Vacuum pump quantity 2 (Built-in)
Power supply 220V, 50Hz (Convertible to 110V)
Average working power 100W
Weight G.W: 45KG (N.W: 25KG)
Packing size L 101cm? 61cm? 48cm

Video Shows:
http://www.tudou.com/home/item_u119688418s0p1.html

1.Vacuum detection, automatically dispose and make up if picking fail or pick misaligned
2.Standard 8G SD card, mass storage of CSV working file, big enough for you to setup hundred thousands files.
3.Integrated Automatic Feeders (cost saving, no need to buy extra mobile feeders), Automatic Nylon Spool Wheel (Very convenient, tape Nylon skin automatically peel away)
4.Easy programming, only takes 5mins: use Protel tool to extract the PCB circuit coordinate file, and use the format transformation tool we provided to you to transform the file format, and then copy to the SD card, insert to the machine, then you could use the file directly.
5.Can mount 0402, 0603, 0805, 1206, 1812, 2010, 2512, SOT-23, LED (3528, 5050), SOT89, SOP-8, SOP-14, SOP-16, SOT-223, SOT-252 and IC components (IC size under 16*16mm, PIN foot less than 100, fine-pitch above 0.6mm, the height of component less than 3mm) with required precision.
Standard Accessories:

1) Pick and Place Machine TM220A: 1
2) 4 types of nozzle: Totally 6 (XS?2, S?2, M?1, L?1).
3) 8G SD Card: 1
4) Card reader: 1
5) Nozzle disassembly tool: 1set
6) Adjustment tool for Nylon Spool Wheel: 1
7) Nozzle cleaning tool: 1 set
8) User manual: 1
9) Video training course: 1 set
10) PCB Coordinate file trans
