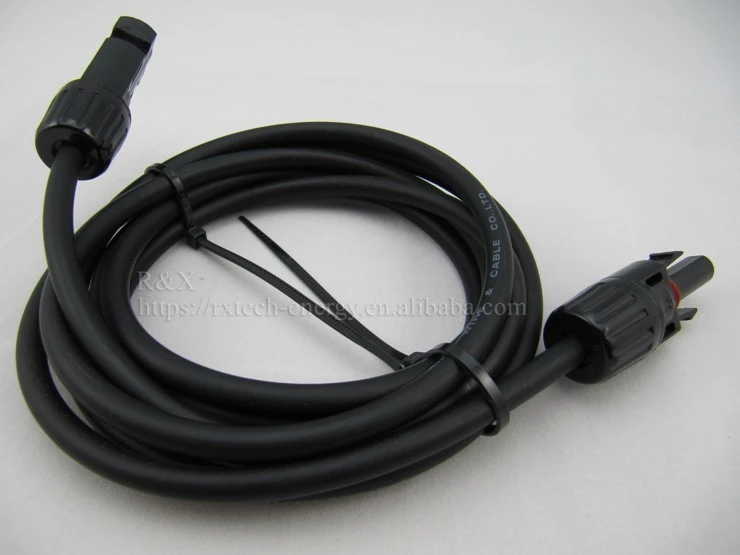

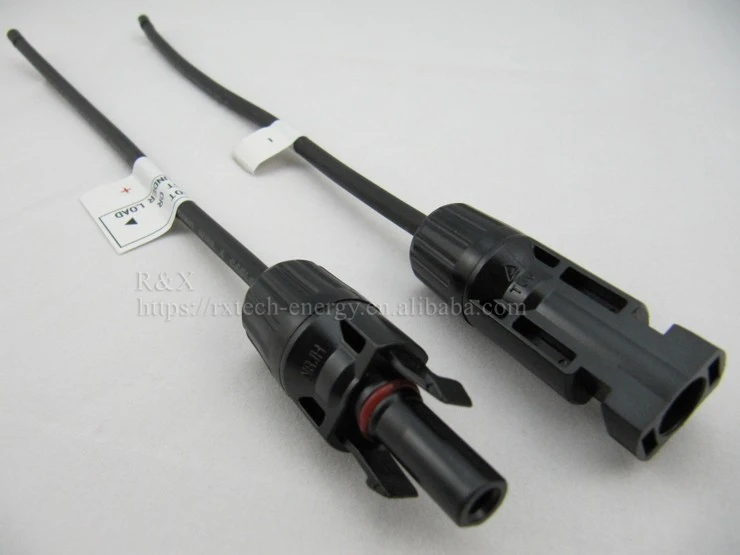

MC4 Solar Cable Assemblied Connector, Solar Connector with 1meter 4mm Solar Cable. Waterproof IP67

Add to Basket Share to :

Price

10 - 999
US$ 0.99
1000 - 9999
US$ 0.89
≥10000
US$ 0.79

Min Order Quantity10 Piece
Supply Ability1000PCS/day
PortShanghai
Delivery Lead Time3-6 work days after your payment
Payment Terms 4
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Nantong R&X Energy Technology Co., Ltd
Membership Free member
Registration Date2013.06.17
Country/RegionChina
CityNantong
Contact Shellyzhou(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name R&X
- Model Number R4-L
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Type Adapter
- Application Solar power system
- Gender male and female
- Certification TUV
- Cable range 2.5/4.0/6.0mm2
- Related Keywords solar cable assemblied connector, MC4 solar cable, solar connector, waterproof IP67

Description by Manufacturer

MC4 solar cable assemblied connector, solar

connector with 1meter 4mm solar cable.

waterproof IP67.

*Photovoltaic cable coupler.

*Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for 25 years.

*Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.

Technical Data of Solar Connector:

Type:R4
Electrical Features:
Rated Current	20A(2.5mm²), 25A(4mm²),32A(6mm²)
Withstanding Voltage	1000V DC(TUV),600V(UL)
Contact Resistance	≤0.3mΩ
Protection Class	Class II
Mechanical Features:
Temperature Range	-40 ºC~+90ºC
Protection Degree	IP2X,unmated;IP68,mated
Wire Size Range	2.5/4/6mm²(14AWG,12AWG,10AWG)
Unmating Force	200 Newton
Material Features:
Insulation Material	PC
Contact Material	Copper,Tin plated
Flame Class	UL94-V0 or UL94-5VA

1000V- .jpg

Advantages of Solar Connector:

•Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly

•High mechanical endurance

•High current and voltage carrying:32A,1000VDC

•Low transition resistance

•Innovative sealed,waterproof,dust resistance design:IP68

•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

•Approved by TUV

Assembly instructions for connector of PV-R4C/...Especially

•During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

•For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

•The end product must provided protection from electric shock

•Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

•Disconnected connectors should be protected from dirt and water with sealing caps.

•Plugged parts are watertight IP68

Touch Protection,mated/unmated IP68/IP2X	Rated Current 20A(2.5mm2) ,25A(4mm2) ,32A(4/6mm2)
Amblient temperature -40°c ~85°c	Roted voltage 1000V DC
Amblient temperature -40°c ~85°c	Safety class ll

Type	Crimping Ranges
	mm²	AWG
PV-R4C/F-1	2.5/4.0	14/12
PV-R4C/M-1	2.5/4.0	14/12
PV-R4C/F-2	4.0/6.0	12/10
PV-R4C/M-2	4.0/6.0	12/10


Assemble the cable and connector

(Picture 1&2)

Push the crimped contact into the socket resp.Plug insulator until it engages .

Pull lightly on the lead to check that the metal part has engaged.

Screw on the cable gland ,hand-light,with the tools PV-STX,tightening torque about:2.2Nm.

Plugging

(Picture3)

Mount the connector together until they engage.

Check correct engagement by Pulling on the coupling.

Unplugging

(Picture 4&5)

Compress the two snap-in springs by hand or with PV-STX tool and separate the coupling

Our Project Case

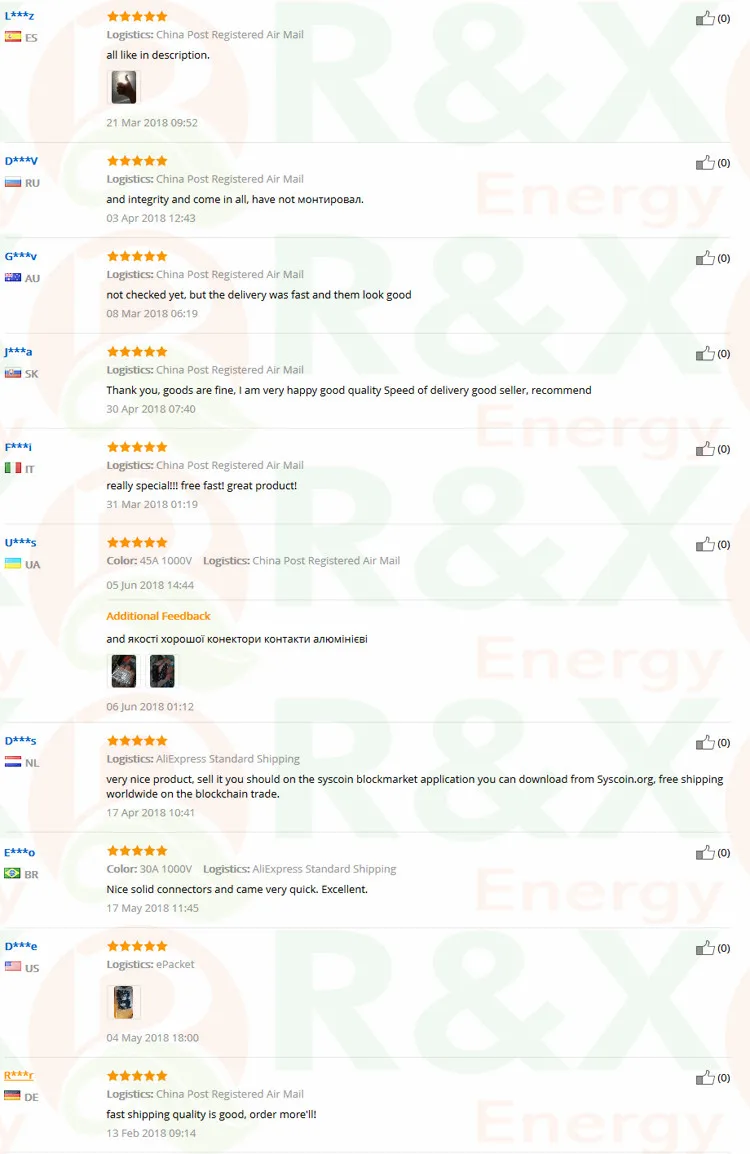

Buyer Feedback
