MC4 Solar Connector Male and Female PV Connector Waterproof IP68 Solar Cable Connector

Add to Basket Share to :

100 - 999
US$ 0.5
1000 - 4999
US$ 0.45
5000 - 9999
US$ 0.4
>=10000
US$ 0.36

Min Order Quantity100 Pair
Supply Ability100000 pairs/ Month
PortShanghai
Delivery Lead Time1-3 work days after your payment
Payment Terms 5Credit Card
Required Quantity

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Nantong R&X Energy Technology Co., Ltd
Membership Free member
Registration Date2013.06.17
Country/RegionChina
CityNantong
Contact Shellyzhou(Ms.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name R&X
- Model Number R4
- Place of Origin China
- Supply Type In-Stock Items
- Condition New
- Color Black
- Type Adapter
- Certification TUV
- Gender male and female
- Standard DIN V VDE V 0126-3/12.06
- Cable range 2.5/4.0/6.0mm2
- Related Keywords mc4 solar connector, solar connector, PV connector, solar cable connector

Description by Manufacturer

MC4 Solar Connector Male and Female PV Connector Waterproof IP68 Solar Cable Connector

*Photovoltaic cable coupler.

*Due to highly robustness,UV-Resistance,the touch protection a high grade connection is guaranteed for 25 years.

*Acc.to DIN V VDE V 0126-3/12.06,UL1703 standard.

Factory Price 1500V DC Solar MC4 Connector by TUV Approval

Technical Data of Solar Connector:

Type:R4
Electrical Features:
Rated Current	22A(2.5mm²), 35A(4mm²),40A(6mm²)
Withstanding Voltage	1500V DC(IEC),1000V/1500V DC(UL)
Contact Resistance	≤0.3mΩ
Protection Class	Class II
Mechanical Features:
Temperature Range	-40 ºC~+90ºC
Protection Degree	IP2X,unmated;IP68,mated
Wire Size Range	2.5/4/6mm²(14AWG,12AWG,10AWG)
Unmating Force	200 Newton
Material Features:
Insulation Material	PC
Contact Material	Copper,Tin plated
Flame Class	UL94-V0 or UL94-5VA

Factory Price 1500V DC Solar MC4 Connector by TUV Approval

Advantages of Solar Connector:

•Simple,quick,safe and effective filed assembly

• Develop independently,innovative design,have independent intellectual property rights,adaptive to MC4 connector directly

•High mechanical endurance

•Low transition resistance

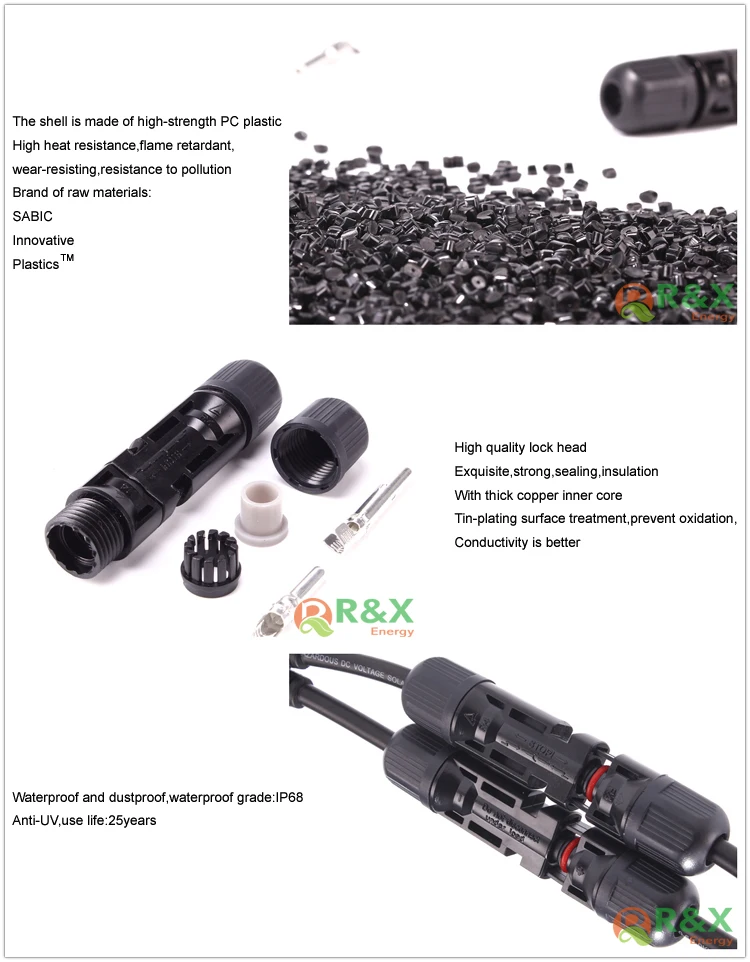

•Innovative sealed,waterproof,dust resistance design:IP68

•Excellent plastic material ,UL 94-V0,wide temperature range:-40°c to 90°c,weather and UV resistant for long-time outdoor application

•Approved by TUV

Assembly instructions for connector of PV-R4C/...Especially

Factory Price 1500V DC Solar MC4 Connector by TUV Approval

•During self assembly ,parts and tools other those stated by R&X are used or if the preparation and assembly instructions described here are disregarded then neither safety nor compliance with the technical data can be guaranteed.

•For protection against electric shock ,PV Connectors must be isolated from the power supply while being assembled or disassembled

•The end product must provided protection from electric shock

•Unplugging under load:PV plug connections must not be unplugged while under load.They can be placed in a no load state by switching off the DC/AC converter or breaking the AC circuit interrupter.Plugging and unplugging while under voltage is permitted

•Disconnected connectors should be protected from dirt and water with sealing caps.

•Plugged parts are watertight IP68

Touch Protection,mated/unmated IP68/IP2X	Rated Current 22A(2.5mm2) ,35A(4mm2) ,40A(6mm2)
Amblient temperature -40°c ~85°c	Roted voltage 1500V DC
Amblient temperature -40°c ~85°c	Safety class ll

Type	Crimping Ranges
	mm²	AWG

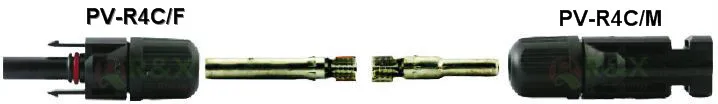

PV-R4C/F-1	2.5/4.0	14/12
PV-R4C/M-1	2.5/4.0	14/12
PV-R4C/F-2	4.0/6.0	12/10
PV-R4C/M-2	4.0/6.0	12/10

Factory Price 1500V DC Solar MC4 Connector by TUV Approval

Assemble the cable and connector

Factory Price 1500V DC Solar MC4 Connector by TUV Approval

(Picture 1&2)

Push the crimped contact into the socket resp.Plug insulator until it engages .

Pull lightly on the lead to check that the metal part has engaged.

Screw on the cable gland ,hand-light,with the tools PV-STX,tightening torque about:2.2Nm.

Plugging

Factory Price 1500V DC Solar MC4 Connector by TUV Approval

(Picture3)

Mount the connector together until they engage.

Check correct engagement by Pulling on the coupling.

Unplugging

Factory Price 1500V DC Solar MC4 Connector by TUV Approval

(Picture 4&5)

Compress the two snap-in springs by hand or with PV-STX tool and separate the coupling

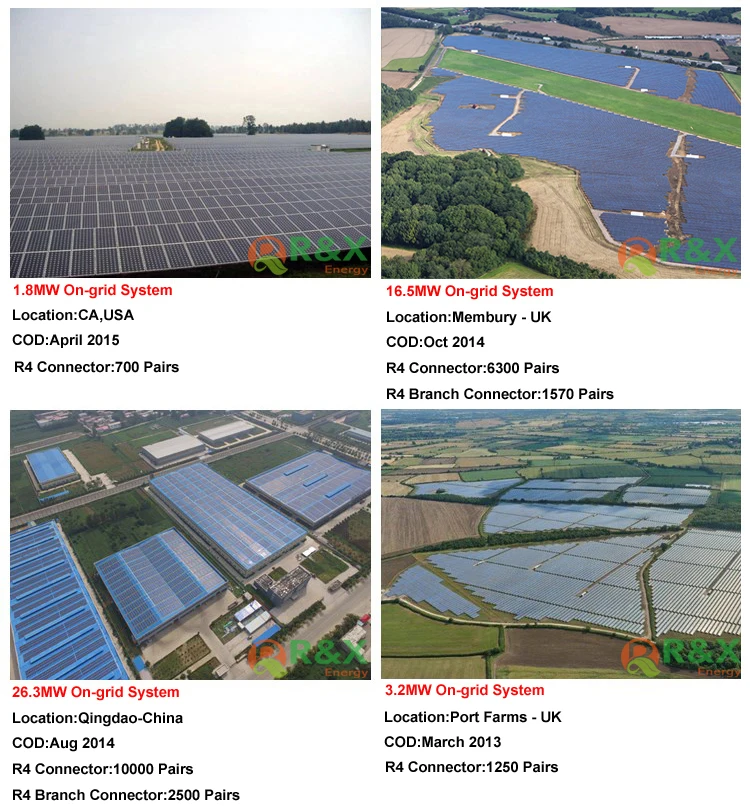

Our Project Case Factory Price 1500V DC Solar MC4 Connector by TUV Approval

Certificates

- TUV R50204773

Price

Price Condition FOB
Price US$ 0.36 ~ 0.5 / Pair

Packaging & Shipping

- Packing1000
- Delivery Lead Time1-3 work days after your payment
- Minimum Order 100 Pair
- Supply Ability100000 pairs/ Month
- Total quantity in StockOver 5000
- Delivery PortShanghai
- HS Code853690000
- Shipping Career

Product Image

MC4 Solar Connector Male and Female PV Connector Waterproof IP68 Solar Cable Connector

MC4 Solar Connector Male and Female PV Connector Waterproof IP68 Solar Cable Connector 2

Product Video

MC4 Solar Connector Male and Female PV Connector Waterproof ...

Mc4 Solar Connector Related Products

Main Export Markets

- Nantong R&X Energy Technology Co., Ltd is mainly exporting to Asia, Europe, North America, South America, Australia, Africa

Download Product Brochure
