Radar Object Detection System (RODS-M) Programmable

Add to Basket Share to :

Payment Terms 1

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name HS Moolsan Co., Ltd.
Membership TradeVerify
Registration Date2007.12.02
Country/RegionKorea
CityBucheon-city
Contact Wonklee(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

Product Attributes

- Brand Name Tancredi
- Model Number HR-100
- Place of Origin Korea
- Supply Type OEM Service
- Condition New
- Related Keywords Anti-collision Radar, Radar Sensor, Heavy Duty Machine Radar, Truck Radar Sensor

Description by Manufacturer

Features

Programmable Radar Sensor (Mode 1 ~ Mode 3)

Transmit frequency : 24.06 ~ 24.22 GHz

Modulation : FMCW

Direction zone : 5 Zones

Detection Area (Meter) : General / Mining and heavy equipment

Mode 1 : 3.5 x 5.0 / 4.0 x 20

Mode 2 : 4.5 x 6.0 / 6.0 x 25

Mode 3 : 5.5 x 10 / 8.0 x 30

Waterproof and rugged design

Option: Alarm output → Alarm output → The radar sensor provides an auxiliary output that becomes active whenever it detects an object. Controls when other equipment. e.g an external alarm or light is activated.

Trigger output –controls when other equipment, e.g. a warning alarm, is activated

Radar Sensor / Display Unit Specification

PARAMETER	Value	Units	Condition
Transmit frequency	24.06 ~ 24.22	GHz	FCC, CE
Modulation	FMCW (Frequency Modulated Continuous Wave )
Supply voltage	12 ~ 32	V DC
Current consumption	300	mA@12V	W/O Alarm
Power on time	300	ms
Detection time	200	ms
Communication	RS-485
Operating temperature	-40 ~ 85	°C
IP protection rate	69	K
Vibration	15	G
Housing material	Polycarbonate / Aluminum Die Cast
Dimension	108 x 110(H) x 34(D)	mm

Detection Zone	5 Zones
Operating Temp.	-30°C ~ +70°C
Cable Length	0.7 M
Connector	4P Screw Lock type
Housing Material	Polycarbonate
Dimension	20(H) x 65(L) x 54(D) mm
Weight	220g with Bracket

Product Image

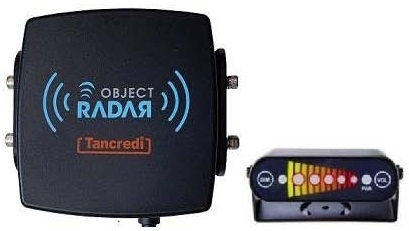

Radar Object Detection System (RODS-M) Programmable

Radar Object Detection System (RODS-M) Programmable 2

Radar Object Detection System (RODS-M) Programmable 3
