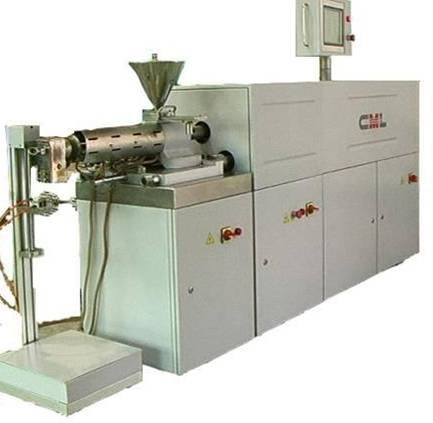

Extrusion Capillary Rheometer

Add to Basket Share to :

Price

US$ 35000

Supply Ability20 set/year
PortGuangzhou
Delivery Lead Time80 days after advance payment

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Guangzhou POTOP Experimental Analysis Instrument Co., Ltd
Membership Free member
Registration Date2012.07.27
Country/RegionChina
CityGuangzhou
Contact Taijun Jiang(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Taijun Jiang

Guangzhou POTOP Experimental Analysis Instrument Co., Ltd

* Buying Product

Category : Testing Equipment

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name POTOP
- Model Number M-CSI-20
- Place of Origin China
- Power Electronic
- Usage Plastic Testing Machine
- LXWXH 1660×550×1660
- Related Keywords rheometer, polymer, experimental

Description by Manufacturer

Main technical parameters
Type	Unit	M-CSI-20
Screw diameter	mm	20
Length/ diameter ratio	L/D	25
Max. speed	rpm	120
Max. torque	Nm	240
Capillary die diameter	mm	1 (L/D=15/20/30)
Capillary die diameter	mm	2 (L/D=20/30/40)
Weighting range	g	0-4.1
Weighting accuracy	g	±0.1
Temp. control accuracy	℃	±1
Max. temp.	℃	350
Heating/cooling		Electrical heating/wind cooling
Total power	kW	12
L×W×H	mm	1660×550×1660
Gross weight	kg	600
Standard configurations
Frame assembly	Euro aluminum alloy frame, 304 stainless steel integral desktop and base board, FootMaster integral high bearing anti shock trundle, rotary operating box
Drive assembly	Schneider servo motor, Japan Shimpo reduction box
Transmission assembly	High strength aluminum alloy tapered roller thrust bearing, build-in coupler
Extrusion assembly	Zhejiang Huaye 38CrMoAlA barrel and screw, cast aluminum heater, independent cooling fan, movable stainless hopper
Capillary assembly	High strength high precise anti-corrosion die
Weighting unit	High precise electric balance, FootMaster integral high bearing and anti shock trundle
Control system	7 inch touch screen, Siemens PLC, Bus module, thermal couples, analog input module, imported temperature transducer.
Electrical cabinet	Electrical cabinet built in frame, aluminum alloy electrical mounting plate, Schneider low-voltage electrical appliance, dedicated cabinet fan, ventilate filter, industry plug and socket
Control computer	DELL Computer

Product specifications

l High precision temperature and pressure transducers.
Mechanical and electro double overload protection device.
High precision electronic balance.
Swift screen changer saves much time.
Space saving integrated frame.

Applications

Apparent viscosity test
Extrusion swell measurement
New formulas development
Optimization of processing technical parameters
Production quality control

Price

Price Condition FOB

Packaging & Shipping

- Packingindependent wooden case
- Packaging Size1660 x 550 x 1660 ( Millimeters)
- Package Weight 600 ( Kilograms )
- Delivery Lead Time80 days after advance payment
- Minimum Order1
- Supply Ability20 set/year
- Delivery PortGuangzhou

Product Image

Rheometer Related Products

Company Profile

About Guangzhou POTOP Experimental Analysis Instrument Co., Ltd

Membership Free member
Registration Date2012.07.27
Country/RegionChina
CityGuangzhou
Contact Taijun Jiang(Mr.)

Guangzhou POTOP experimental analysis instrument Co., Ltd was co-established in 2009 by the National Engineering Research Center of Novel Equipment for Polymer Processing in South China University of Technology, Hong Kong cosmos machinery Co., Ltd and Guangzhou Jinsu machinery Co., Ltd. The company locates in the beautiful flower city Guangzhou and is a rising hi-tech enterprise specializing in R&D and manufacturing of polymer rheometer and polymer processing experimental instruments.
The polymer rheometer manufactured by POTOP with independent intellectual property rights (4 world first technology and 10 innovative patens) can be used to test rheological properties by capillary extrusion and torque banburying. Besides this equipment can be applied to extrusion, film blowing, calendaring, film casting, granulation, blending and injection. We can also provide an absolute solution for rubber-plastic processing and property test.
Live with quality; develop with trust and put the buyers first are our guidelines. So far we have successively developed ?fish-eye? tester, master batch dispersion tester, mini precision extrusion casting experimental line, mini precision extrusion film blowing experimental line, polymer MDO/BO film blowing experimental instrument, most of which fill the domestic blank.
The company's leading manufacturing technology, excellent quality of equipment, first-class after-sales service wins a lot of customers. The experimental instruments cover full range of polymer processing and are easy to operate and available to broaden its further functions. They can be adopted to test polymer rheological properties, to develop new formulas and to optimize processing parameters for university polymer related laboratories, pilot plants, technology research and development department in plastic raw material and processing industry. By far we have established a good relationship with 3M, Zte's new communication, Dongfang steam turbine,Yanshan petrochemical etc
