Product Attributes

- Brand Name POTOP
- Model Number M-TNI-55
- Place of Origin China
- Power Electronic
- Usage Plastic Testing Machine
- Related Keywords Rheometer, Polymer, Experimental

Description by Manufacturer

Main technical parameters
Type	Unit	M-TNI-55
Speed ratio		2:3
Max. torque	Nm	300
Torque tolerance		0.5 % F.S
Banburying chamber volume	cm³	55
Temp. accuracy	℃	±1
Max. temperature	℃	400
Heating/cooling		Electrical heating/wind cooling
Total power	kW	4.5
L×W×H	mm	1250×550×1350
Gross weight	kg	400
Standard configurations
Frame assembly	Euro aluminum alloy frame, 304 stainless steel integral desktop and base board, FootMaster integral high bearing anti shock trundle
Drive assembly	French Schneider servo motor, Japan Shimpo reduction box
Transmission assembly	High strength aluminum alloy gear box, high precision gear
Torque transducer	Beijing SJ torque transducer
Chamber	High strength anti-corrosion Banburying chamber and rotor
Control system	Siemens control system
Low-voltage appliance	Siemens electrical parts
Control computer	DELL Computer

Product specifications

Measuring condition is close to actual production.
High precision measurement can recognize subtle changes in structure and ingredients.
Integrated frame saves much space.
Easy to operate, disassemble and clean.
Mechanical-electro double overload protection device.

Applications

Research in polymer formula
Performance and quality test
PVC melting property test
PVC plasticizing agent absorption property test
Thermal and shear stability of thermoplastic resin test
Cross-linking of XLPE test
Research in polymer flow and solidification

Main functions

By measuring the toque-rote speed curve, the subtle changes in structure, rheological property and processing technique of materials can be reflected by the peaks or valleys.

Price

Price Condition FOB

Packaging & Shipping

- Packingindependent wooden case
- Packaging Size1250 x 550 x 1350 ( Millimeters)
- Package Weight 400 ( Kilograms )
- Delivery Lead Time80 days after advanced payment
- Minimum Order1
- Supply Ability20 sets/year
- Delivery PortGuangzhou

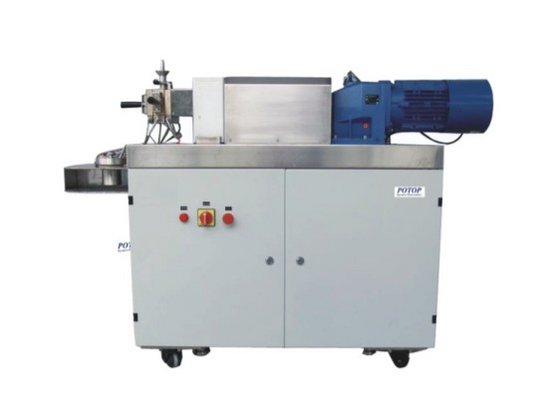

Product Image

Rheometer Related Products

Company Profile

About Guangzhou POTOP Experimental Analysis Instrument Co., Ltd

Membership Free member
Registration Date2012.07.27
Country/RegionChina
CityGuangzhou
Contact Taijun Jiang(Mr.)

Guangzhou POTOP experimental analysis instrument Co., Ltd was co-established in 2009 by the National Engineering Research Center of Novel Equipment for Polymer Processing in South China University of Technology, Hong Kong cosmos machinery Co., Ltd and Guangzhou Jinsu machinery Co., Ltd. The company locates in the beautiful flower city Guangzhou and is a rising hi-tech enterprise specializing in R&D and manufacturing of polymer rheometer and polymer processing experimental instruments.
The polymer rheometer manufactured by POTOP with independent intellectual property rights (4 world first technology and 10 innovative patens) can be used to test rheological properties by capillary extrusion and torque banburying. Besides this equipment can be applied to extrusion, film blowing, calendaring, film casting, granulation, blending and injection. We can also provide an absolute solution for rubber-plastic processing and property test.
Live with quality; develop with trust and put the buyers first are our guidelines. So far we have successively developed ?fish-eye? tester, master batch dispersion tester, mini precision extrusion casting experimental line, mini precision extrusion film blowing experimental line, polymer MDO/BO film blowing experimental instrument, most of which fill the domestic blank.
The company's leading manufacturing technology, excellent quality of equipment, first-class after-sales service wins a lot of customers. The experimental instruments cover full range of polymer processing and are easy to operate and available to broaden its further functions. They can be adopted to test polymer rheological properties, to develop new formulas and to optimize processing parameters for university polymer related laboratories, pilot plants, technology research and development department in plastic raw material and processing industry. By far we have established a good relationship with 3M, Zte's new communication, Dongfang steam turbine,Yanshan petrochemical etc
