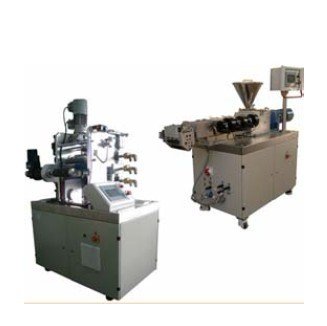

Mini Precise Calendaring Machine

Add to Basket Share to :

Price

US$ 32000

Supply Ability20 sets/year
PortGuangzhou
Delivery Lead Time80 days after advance payment

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Guangzhou POTOP Experimental Analysis Instrument Co., Ltd
Membership Free member
Registration Date2012.07.27
Country/RegionChina
CityGuangzhou
Contact Taijun Jiang(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Taijun Jiang

Guangzhou POTOP Experimental Analysis Instrument Co., Ltd

* Buying Product

Category : Other Manufacturing & Processing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name POTOP
- Model Number F-PSU-20/25/30/35
- Place of Origin China
- Related Keywords calender, polymer

Description by Manufacturer

Main technical parameters
Type	Unit	F-PSU-20	F-PSU-25	F-PSU-30	F-PSU-35
Screw diameter	mm	20	25	30	35
Length/diameter ratio	L/D	28		30	32
Max. speed	rpm	120
Sheeting width	mm	0-230
Sheeting thickness	mm	0.2-2
Press roll stroke	mm	0-5
Temp. measuring accuracy	℃	±1
Max. temp.	℃	180
Capacity	kg/h	1.5-4.3	3.6-8.4	6.2-14.6	9.9-23.2
L×W×H	mm	3000×1120 ×1720	3100×1120 ×1720	3200×1120 ×1720	3300×1120 ×1720
Gross weight	kg	200	250	300	350
Standard configurations
Frame assembly	Euro aluminum alloy frame, 304 stainless steel integral desktop and base board, FootMaster integral high bearing anti shock trundle, rotary operating box
Drive assembly	Nord frequency conversion motor and reduction box, Siemens frequency converter
Transmission assembly	High strength aluminum alloy tapered roller thrust bearing, build-in coupler
Extrusion assembly	Zhejiang Huaye 38CrMoAlA barrel and screw, cast aluminum heater, independent cooling fan, movable stainless hopper
Calendaring roll	Nord variable frequency motor, chrome coated and mirror polished roll surface, stainless roll shaft, water cooling
Haul-off steel roll	JSCC variable frequency motor, chrome coated and mirror polished roll surface, stainless roll shaft
Haul-off rubber roll	Nature rubber coated roll and stainless roll shaft
Transition roll	Aluminum alloy roll with anodic oxidation treated roll surface, stainless steel roll shaft
Winder roll	JSCC torque motor, inflatable shaft winder
Control system	7 inch touch screen, Siemens PLC, Bus module, analog input module, imported temperature transducer.

Product specifications

Linear sliding rail oriented triple rolls and double pressure cylinder can precisely control the thickness of the sheet.
Three independent diving rolls enhance the adjustment flexibility.
Chrome coated and mirror polished roll surface produce a much fine sheet. High strength Aluminum alloy transmission box is of excellent cooling effect
Rotary operation cabinet.

Applications

Preparation of various sheets
Research in new formula
Calendaring for high viscous polymer
Preparation of multilayer functional film

Price

Price Condition FOB

Packaging & Shipping

- Packingindependent wooden case
- Packaging Size3000 x 1120 x 1720 ( Millimeters)
- Package Weight 350-500 ( Kilograms )
- Delivery Lead Time80 days after advance payment
- Minimum Order1
- Supply Ability20 sets/year
- Delivery PortGuangzhou

Product Image

Calender Related Products

Company Profile

About Guangzhou POTOP Experimental Analysis Instrument Co., Ltd

Membership Free member
Registration Date2012.07.27
Country/RegionChina
CityGuangzhou
Contact Taijun Jiang(Mr.)

Guangzhou POTOP experimental analysis instrument Co., Ltd was co-established in 2009 by the National Engineering Research Center of Novel Equipment for Polymer Processing in South China University of Technology, Hong Kong cosmos machinery Co., Ltd and Guangzhou Jinsu machinery Co., Ltd. The company locates in the beautiful flower city Guangzhou and is a rising hi-tech enterprise specializing in R&D and manufacturing of polymer rheometer and polymer processing experimental instruments.
The polymer rheometer manufactured by POTOP with independent intellectual property rights (4 world first technology and 10 innovative patens) can be used to test rheological properties by capillary extrusion and torque banburying. Besides this equipment can be applied to extrusion, film blowing, calendaring, film casting, granulation, blending and injection. We can also provide an absolute solution for rubber-plastic processing and property test.
Live with quality; develop with trust and put the buyers first are our guidelines. So far we have successively developed ?fish-eye? tester, master batch dispersion tester, mini precision extrusion casting experimental line, mini precision extrusion film blowing experimental line, polymer MDO/BO film blowing experimental instrument, most of which fill the domestic blank.
The company's leading manufacturing technology, excellent quality of equipment, first-class after-sales service wins a lot of customers. The experimental instruments cover full range of polymer processing and are easy to operate and available to broaden its further functions. They can be adopted to test polymer rheological properties, to develop new formulas and to optimize processing parameters for university polymer related laboratories, pilot plants, technology research and development department in plastic raw material and processing industry. By far we have established a good relationship with 3M, Zte's new communication, Dongfang steam turbine,Yanshan petrochemical etc
