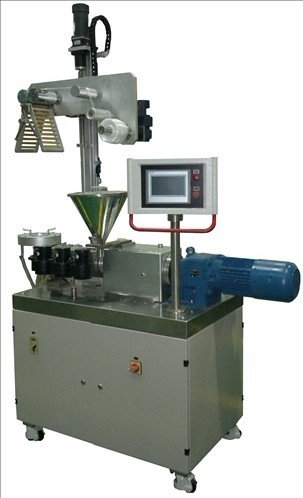

Mini Precise Integrated Blowing Machine

Add to Basket Share to :

Price

US$ 28000

Supply Ability20 sets/year
PortGuangzhou
Delivery Lead Time70 days after advance payment

Inquire Now

* Send an Inquiry to this supplier.

Start Order

* Name your price
* Start order doesn't mean buying now

Supplier Info.

Company Name Guangzhou POTOP Experimental Analysis Instrument Co., Ltd
Membership Free member
Registration Date2012.07.27
Country/RegionChina
CityGuangzhou
Contact Taijun Jiang(Mr.)

Report Item

Your report on Product(s) will be sent to EC21 Administrators once submitted.
Then, Administrators will investigate and then take appropriate actions.

Send Report Item

Contact Supplier

* From

Mr.Taijun Jiang

Guangzhou POTOP Experimental Analysis Instrument Co., Ltd

* Buying Product

Category : Plastic Blowing Machinery

- Please enter your specific buying item.
e.g. 42inch LCD TV, leather executive chair

* Messages Use English only Max. 2000 characters. (Min. 20)

Send

EC21.com does not guarantee the validity of product information or the credentials of sellers.

Product Attributes

- Brand Name POTOP
- Model Number F-BSI-20/25/30/35
- Place of Origin China
- Related Keywords blown film, extrusion, polymer

Description by Manufacturer

Main technical parameters
Type	Unit	F-BSI-20	F-BSI-25	F-BSI-30	F-BSI-35
Screw diameter	mm	20	25	30	35
Length/diameter ratio	L/D	28		30	32
Max. speed	rpm	120
Die diameter	mm	20	20
Max. lay flat width	mm	200	200
Roll width	mm	230
Temp. measuring accuracy	℃	±1
Max. temp.	℃	400
Capacity	kg/h	1.5-4.3	3.6-8.4	6.2-14.6	9.9-23.2
L×W×H	mm	1750×700 ×2490	1950×700 ×2490	1180×700 ×2490	2300×700 ×2490
Gross weight	kg	200	250	300	350
Standard configurations
Frame assembly	Euro aluminum alloy frame, 304 stainless steel integral desktop and base board, FootMaster integral high bearing anti shock trundle
Driving assembly	Nord frequency conversion motor and reduction box, Siemens frequency converter
Transmission assembly	High strength aluminum alloy transmission box, build-in coupler
Extrusion assembly	Zhejiang Huaye 38CrMoAlA barrel and screw, cast aluminum heater, independent cooling fan, movable stainless hopper
Blowing unit	High precise film blowing die, aluminum vane, air blower, hard chrome coated mirror roll, 304 stainless steel roller core, high strength aluminum alloy bearing pedestal, side plate, bipod ball positioning device, film carriage guide pillar lifting device, JSCC haul-off and lifting variable frequency motor, winder torque motor
Control system	7 inch touch screen, Siemens PLC, Bus module, analog input module, imported temperature transducer.
Electrical cabinet	Electrical cabinet built in frame, aluminum alloy electrical mounting plate, Schneider low-voltage electrical appliance, dedicated cabinet fan, ventilate filter, industry plug and socket

Product specifications

Space saving integrated frame makes it easy to operate.
The electric film carriage guide pillar makes high processing technical requirements possible.
Membrane plane retractable unit makes it easy to load and transport.
International brand driving motor and reduction gear box are adopted in the transmission box, thus the stepless speed regulating is achieved.
High strength Aluminum alloy transmission box is of excellent cooling effect.

Applications

Research in new formula
Film blowing property test
Dispersion test for color master batch
Optimization of blowing technical parameters

Price

Price Condition FOB

Packaging & Shipping

- Packingindependent wooden case
- Packaging Size1750 x 700 x 2490 ( Millimeters)
- Package Weight 200-350 ( Kilograms )
- Delivery Lead Time70 days after advance payment
- Minimum Order1
- Supply Ability20 sets/year
- Delivery PortGuangzhou

Product Image

Blown Film Related Products

Company Profile

About Guangzhou POTOP Experimental Analysis Instrument Co., Ltd

Membership Free member
Registration Date2012.07.27
Country/RegionChina
CityGuangzhou
Contact Taijun Jiang(Mr.)

Guangzhou POTOP experimental analysis instrument Co., Ltd was co-established in 2009 by the National Engineering Research Center of Novel Equipment for Polymer Processing in South China University of Technology, Hong Kong cosmos machinery Co., Ltd and Guangzhou Jinsu machinery Co., Ltd. The company locates in the beautiful flower city Guangzhou and is a rising hi-tech enterprise specializing in R&D and manufacturing of polymer rheometer and polymer processing experimental instruments.
The polymer rheometer manufactured by POTOP with independent intellectual property rights (4 world first technology and 10 innovative patens) can be used to test rheological properties by capillary extrusion and torque banburying. Besides this equipment can be applied to extrusion, film blowing, calendaring, film casting, granulation, blending and injection. We can also provide an absolute solution for rubber-plastic processing and property test.
Live with quality; develop with trust and put the buyers first are our guidelines. So far we have successively developed ?fish-eye? tester, master batch dispersion tester, mini precision extrusion casting experimental line, mini precision extrusion film blowing experimental line, polymer MDO/BO film blowing experimental instrument, most of which fill the domestic blank.
The company's leading manufacturing technology, excellent quality of equipment, first-class after-sales service wins a lot of customers. The experimental instruments cover full range of polymer processing and are easy to operate and available to broaden its further functions. They can be adopted to test polymer rheological properties, to develop new formulas and to optimize processing parameters for university polymer related laboratories, pilot plants, technology research and development department in plastic raw material and processing industry. By far we have established a good relationship with 3M, Zte's new communication, Dongfang steam turbine,Yanshan petrochemical etc
